Manger

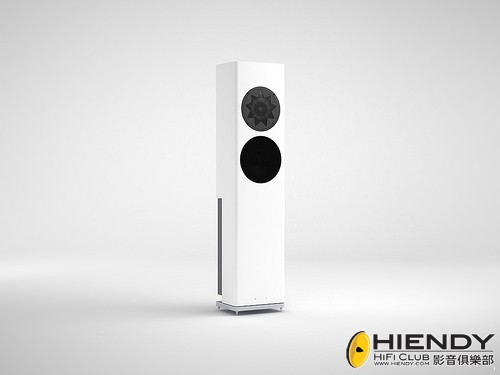

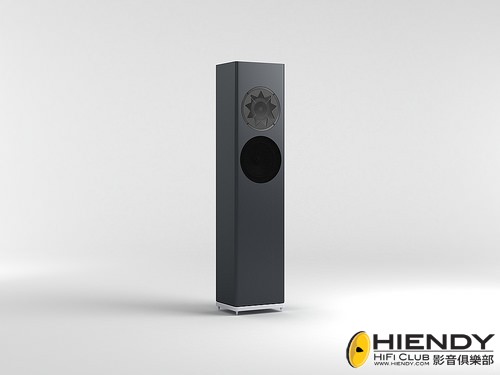

Manger MSS P1 – Passive Floorstanding Loudspeakers
兩路被動式座地揚聲器 2-way PASSIVE
單元 Drivers:
– 高音 HF: MSW (80Hz- 40KHz), risetime 13μs
– 低音 LF: Woofer 210mm. Special coated carbon fiber paper cone
分頻點: Crossover Frequency: 350Hz.
Mundorf & Audyn parts Cabinet: Closed
頻率表現 Freq. response: 40Hz-40KHz
阻抗 Impedance: 4 Ω
效率 Sensitivity: 88 dB (1W/1m)
接駁 Connectors:2pairsWBTNextGen® (Hi-Mid&LowFreq.)
尺寸 Dimensions (HxWxD): 1139x270x214 mm
重量 Weight: 28 kg

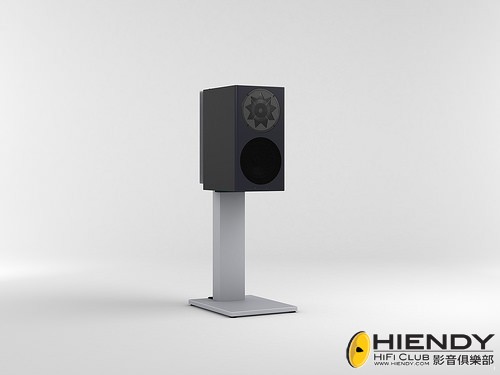

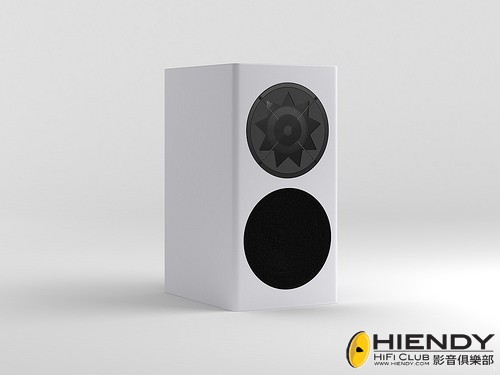

Manger MSS Z1 – Passive Bookshelf Speakers
兩路被動式書架揚聲器 2-way PASSIVE Monitor
單元 Drivers:
– 高音 HF: MSW (80Hz – 40 KHz), risetime 13μs
– 低音 LF: Woofer 210mm. Special coated carbon fiber paper cone.
分頻點 Crossover frequency: 360Hz.
Mundorf & Audyn parts 密封式聲箱 Cabinet: Closed
頻率表現 Freq. response: 40Hz-40KHz
阻抗 Impedance: 4 Ω
效率 Sensitivity: 88 dB (1W/1m)
接駁 Connectors:2pairsWBTNextGen® (Hi-Mid&LowFreq.)
尺寸 Dimensions (HxWxD): 534x270x364 mm
重量 Weight: 26 kg.

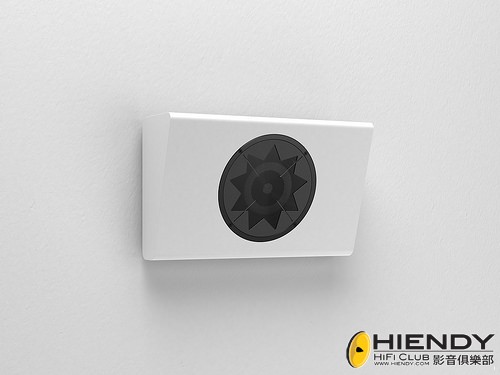

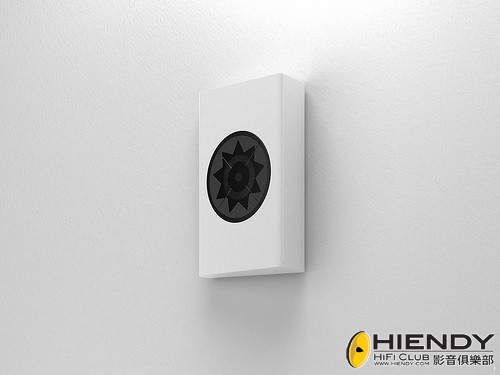

Manger MSS W1 – Wall Mount Home Theatre Speakers
1-way PASSIVE Monitor “On-Wall” Driver:
– 高音 HF: MSW (120Hz – 40kHz), risetime 13μs
密封式聲箱 Cabinet: Closed
頻率表現 Freq. response: 120Hz-40kHz
效率 Sensitivity: 90 dB (1w/1m)
接駁 Connectors: 1 pair binding-post
尺寸 Dimensions (HxWxD): 264x128x436 mm / 重量 Weight: 9 kg

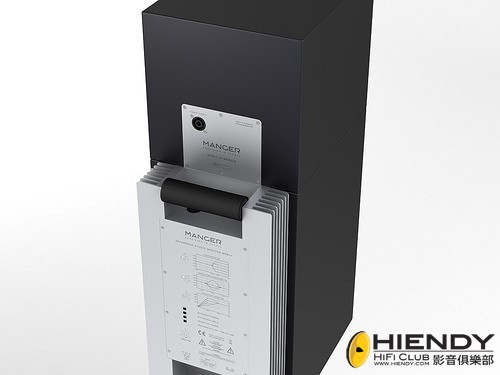

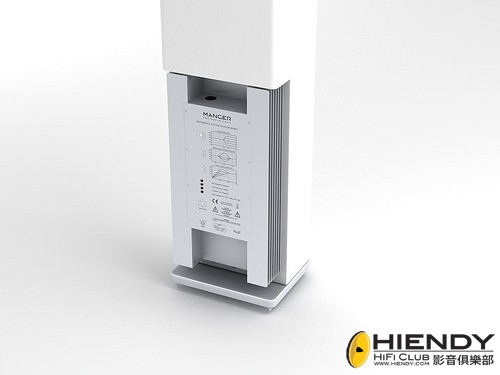

Manger MSMs1 – Floorstanding Reference Active System
兩路主動式座地揚聲器 2-way ACTIVE – Brochure download
– 高音擴大器 HF: 180 W
– 低音擴大器LF : 250 W
單元 Drivers:
– 高音 HF: MSW (80Hz – 40 KHz), risetime 13μs
– 低音 LF: Woofer 200mm fibreglass-Polyester sandwich
分頻點 Analog Electronic X-over: 330Hz
密封式聲箱 Cabinet: Closed
頻率表現 Freq. response: 30Hz-40kHz
接駁 Input: XLR (10kΩ)
最大音壓 Max SPL: 110 dB
尺寸 Dimensions: 1139x270x214 mm / 重量 Weight: 42 kg

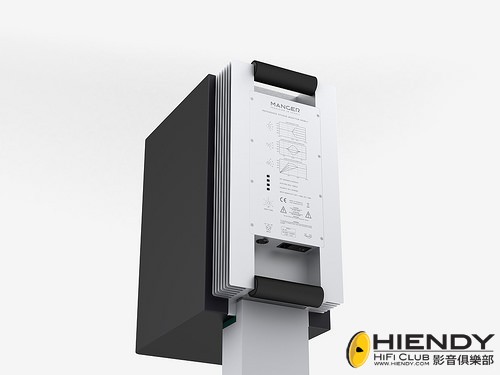

Manger MSMc1 – Active Reference Bookshelf Studio Monitors
兩路主動式書架揚聲器 2-way ACTIVE
– 高音擴大器 HF: 180 W
– 低音擴大器 LF: 250 W
單元 Drivers:
– 高音 HF: MSW (80Hz – 40kHz), risetime 13μs
– 低音 LF: Woofer 200mm fibreglass-Polyester sandwich
分頻點 Analog Electronic X-over: 330Hz
密封式聲箱 Cabinet: Closed
頻率表現 Freq. response: 30Hz-40kHz
接駁 Input: XLR (10kΩ)
最大音壓 Max SPL: 110 dB
尺寸 Dimensions (HxWxD): 495x270x424 mm / 重量 Weight: 30 Kg
MSM C1 Fixed stand : Height: 620 mm or 880 mm
MSM C1 Lift stand : Height: Adjustable between 780 mm& 1080 mm
Manger MSMc1 with LF woofers – Active Reference Bookshelf Studio Monitors
MSM C1 L.F. Module:
Passive woofer module (max. SPL +6dB)
接駁 To be connected to MSMc1 back amplifier output No extra-amp. required
尺寸 Dimensions (HxWxD): 264 x 270x 343mm / 重量 Weight: 11kg
MSM C1 Fixed stand : Height: 620 mm or 880 mm
MSM C1 Lift stand :Height: Adjustable between 780 mm& 1080 mm
提供音響界前所未有的自訂顏色服務。1625種RAL (http://www.ralcolor.com) 顏色任你選擇
產品價格:
http://squarewaveltd.com/priceli … 4-DoubleSide-A3.pdf
方浪音響 Squarewave HiFi / DreamRoom 陳列室
Room 616, Star House, 3 Salisbury Road, Tsim Sha Tsui, Kowloon
尖沙咀梳士巴利道3號星光行616室 （大堂升降機按6字）
電話 Telephone：(852) 3563 9535
