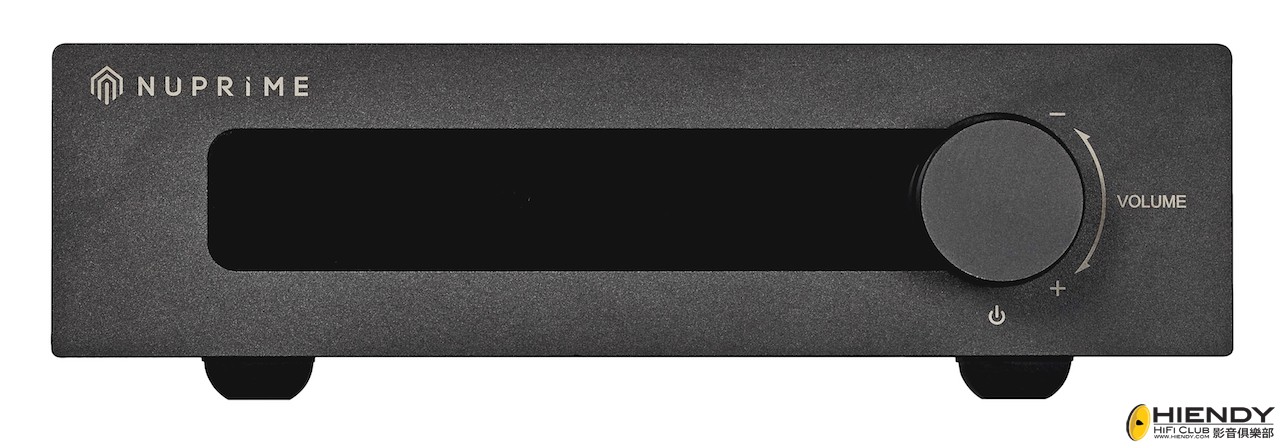

NuPrime IDA-6 A+D類合併擴音機
兼備PCM384/DoP64解碼與藍牙無線數碼接收功能

(隨機附送高端高分辨率藍牙串流器)



NuPrime IDA-6一款小巧精緻, 功能強大的合併擴音機,內置超低噪音設計,兼備PCM 384/DoP64數字模擬轉換解碼,藍牙無線數碼接收功能 。

NuPrime的單端A + D混合放大技術提供了A類放大的實質和溫暖性以及D類技術的效率和速度。 IDA-6的寬敞,清澈通透,帶著動態和豪華的質感音效, 另你聆聽后難以相信。

(隨機附送高端高分辨率藍牙串流器)

產品介紹

IDA-6用上了高級音響的設計技術,允許它執行PCM 384和DoP64解碼,效果達到高端DAC的性能, SRC(採樣率轉換器)FPGA IC芯片在將輸入信號下,採樣到固定的PCM採樣率以實現超低抖動和失真率之前,將輸入信號上採樣到千兆赫範圍。這種分類的固定採樣率簡化了系統設計,從而產生真正物超所值小巧精緻的解碼合併擴音機, 另感覺到前所未有的音質。

IDA-6用上備受贊譽超低噪音放大平台,另一關鍵就是採用了創新的獨立薄膜式電阻音量調控技術,讓每一級的音量衰減由單一的薄膜電阻負責。每一組聲源輸入的音量,都可以獨立被調控,最多99級,而每級為精準之0.5dB增減。此功能更可以讓用家輕易調節不同音源輸入的音量以達至一致的水平,方便用家將不同音源作相互比較。
NuPrime放大器電路通過使用自振盪電路來產生脈衝寬度調製,改進了傳統的D類設計。放大器以500kHz的頻率切換,比一般D類放大器的開關頻率為300kHz或更低和遠遠超越一般CD的44.1kHz採樣率, IDA-6更採用新的低噪訊開關電源專門設計。

IDA-6對50 kHz的頻率響應的改善,另人聲提升到實質和溫暖,器樂上還原極相近。 IDA-6的特性和規格非常超直,如不親自聆聽,真的難以相信。

特色配置:

設計上使用單端A + D類的動態,另速度和效率發揮出高質音效
取樣率轉換(SRC)—集成電路芯片(IC) + DAC支持PCM 384和DoP64解碼,通過同軸和光輸入解碼DoP格式
設有藍芽(隨機附送高端分辨率藍牙串流器)或無線WiFi數碼音源串流接收模塊接埠(另購)
由微處理器負責所有調控操作並帶記憶功能
5組數碼輸入和1組立體聲模擬訊號輸入,提供足夠的零活多用途性
支援通過同軸和光纖S/PDIF接埠輸入DoP格式解碼
音量調節在99精確0.5dB增量
控制音量的高級開關電阻梯形網絡(實現在FPGA中),音量在任何設置下也可以使用這單一電阻器
專為Windows電腦而設的專用驅動程式和適用於Mac 電腦的標準驅動程式
支援不同步數碼傳送模式
處於靜止狀態時,電耗非常之低
黑色機身
跟機附送遙控器

產品規格:

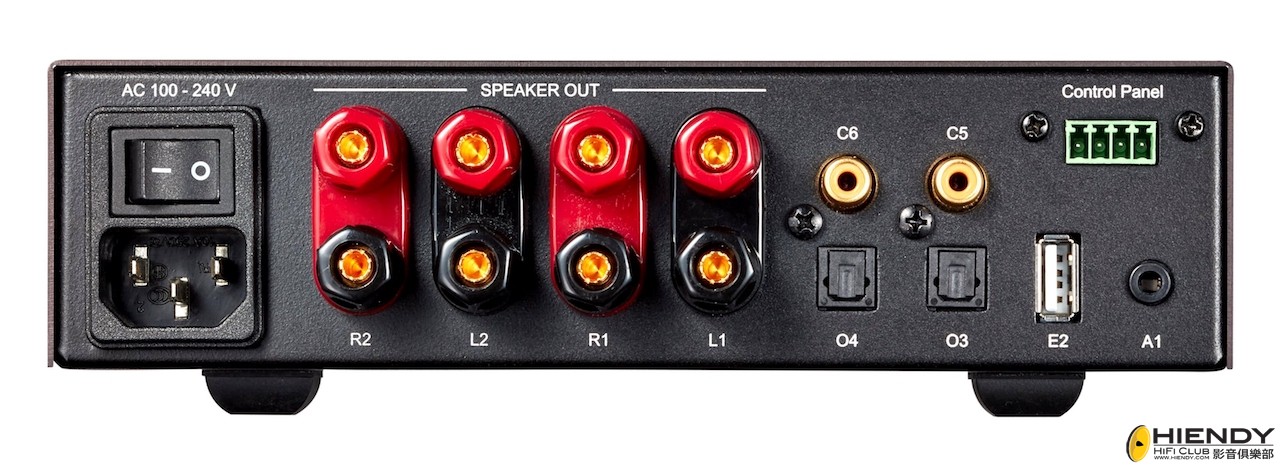

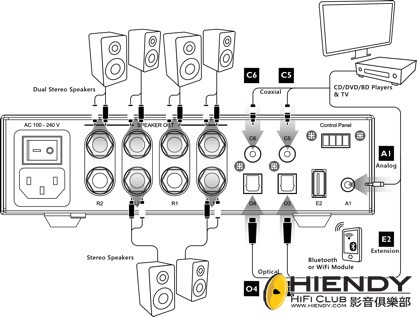

輸入:

A1: 3.5mm 模擬立體聲訊號
E2:  TR-8高端分辨率藍牙串流器(隨機附送) 或 無線WiFi音頻串流(須另配置)
O3: 光纖數碼接埠S/PDIF(支援 PCM 192kHz 及 DSD 64 以 DoP方式解碼)
O4: 光纖數碼接埠S/PDIF(支援 PCM 192kHz 及 DSD 64 以 DoP方式解碼)
C5: 同軸數碼接埠S/PDIF (支援 PCM 384 及 DSD 64 以 DoP方式解碼)
C6: 同軸數碼接埠S/PDIF (支援 PCM 384 及 DSD 64 以 DoP方式解碼)

輸出:

2組立體聲喇叭輸出
1 x用於擴展面板顯示屏和控制面板(須另配置)

*請注意,絕對不建議使用2對(4-Ohm)的揚聲器,因為它會影響音質數*

纖數碼接取樣率:44.1KHz,48KHz,88.2KHz,96,176.4KHz,192KHz
同軸數碼取樣率:44.1KHz,48KHz,88.2KHz,96,176.4KHz,192KHz,352.8KHZ,384KHz
最大數碼位元::24位
輸出功率: 60W x 2(8-Ohm)或35W x 4(4-Ohm)*
總諧波失真(THD+N): 0.05%
訊噪比= > 88dB
峰值輸出功率:170W
頻率響應:10Hz〜50KHz
體積:200 mm寬x 198 mm D x 60 mm H(包括腳)
重量:1.4Kg
全球適用交流電壓:(90VAC〜130VAC // 210VAC〜250VAC)
機身只提供黑色。

Price:
$4 800.00

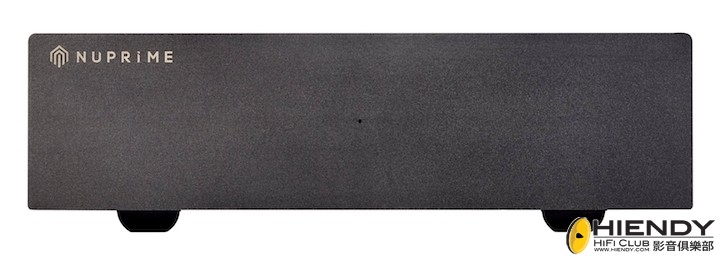

NuPrime STA-6 Stereo Amplifier
Class A+D 2x 90W Stereo Amplifier, which can be bridgeable into a 160W mono amp

Class A+D Stereo Amplifier Brigeable into a 160 watt Mono Amplifier

With 2 X 90W Class A+D stereo amp, bridgeable into a 160W mono amp, STA-6 is designed with enhanced even-order harmonic circuitry that produces sonic characteristic similar to NuPrime STA-9, but leaning toward neutral with a slight hint of warmth. The STA-6’s spacious, transparent, dynamic and luxuriously textured soundstage has to be heard to believed.

alt

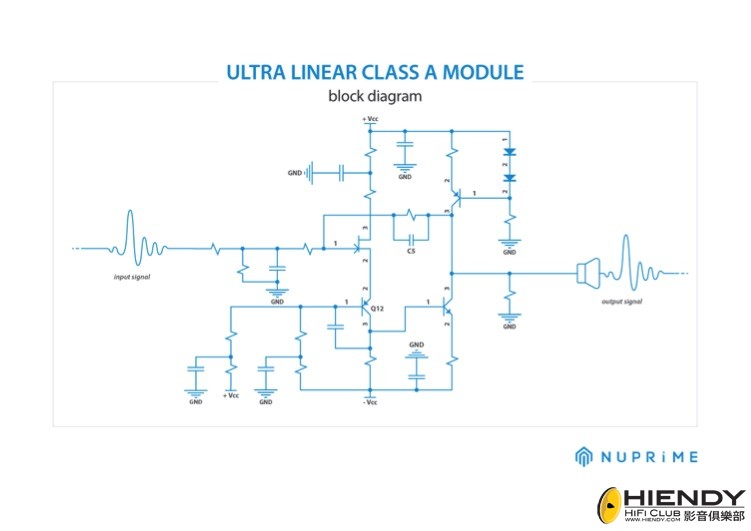

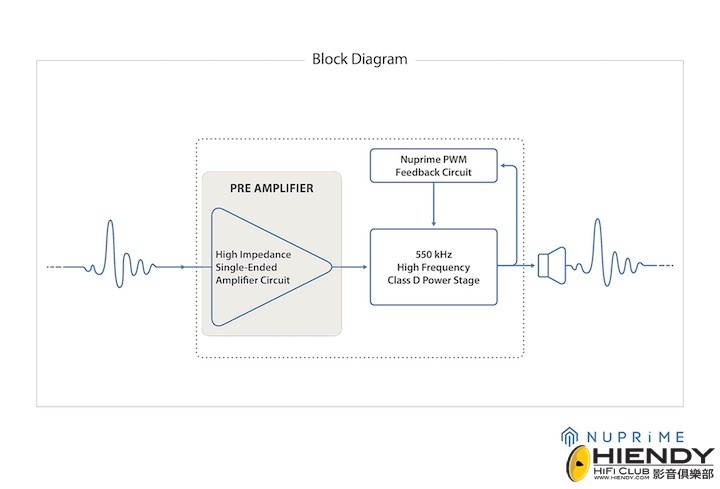

The STA-6 amplifier is derived from the Single End Class A Module + Class D design first introduced in the STA-9. By joining a powerful high impedance singled ended amplifier circuit in the preamp stage with a well integrated Class-D power stage, the STA-6 offers the richness of Class A sound with the remarkable speed and clarity of NuPrime Class-D design. Audio enthusiasts are bound to be impressed.

The NuPrime amp circuit improves on traditional Class-D design by using a self-oscillating circuit to generate pulse-width modulation. The amplifier switches at a frequency of 500kHz, well beyond the compact disc’s 44.1kHz sampling rate. Most class-D amps switch at 300kHz or lower. A new low noise switching power supply is designed specifically to complement the STA-6 amplifier. The overall result is unprecedented transient speed, smooth with lots of details and an almost shocking level of dynamic impact.

The STA-6’s frequency response to 50 kHz elevates vocals into emotional experiences; similarly, instrumental upper registers mimic a live performance’s shimmering heights.

The STA-6 is designated for NuPrime Commercial product line and it is designed to be highly reliable under no-load condition and enhanced short circuit protection.

Specifications:

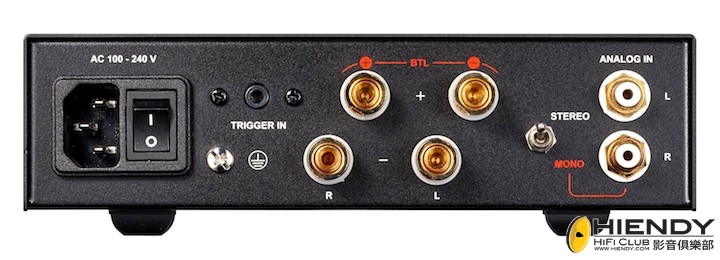

Inputs: RCA: Un-Balanced input x 1
Outputs: Stereo Speaker Out x 1 or Mono Speaker Out x 1
Power: 2 x 90W / 1 x 160W @ 8 & 4 Ohms. Same power at 8 & 4 Ohms as the output power is limited by the power supply.
Input Impedance: 47k Ohms
Gain: x 28
Signal to Noise Ratio: > -90dB at 1W, 10W, 100W
THD+N: 0.01% (Stereo) / 0.01% (Mono)
Frequency Response: 10Hz to 50kHz
Worldwide AC voltage: 90 VAC~250 VAC
Dimension: 200 mm W x 184 mm D x 60 mm H (including feet)
Weight: kg
Color: Black

Price:$3400.00

**為回饋各用家,NuPrime 全線產品價格下調了10-20%,如果跟 Celsus Sound SP ONE 一同訂購更會有特別折扣

查詢:

CYJP Audio 傳韻佳品

Address:
九龍旺角亞皆老街8號朗豪坊辦公大樓2512室
香港

Email:         [email protected]
Telephone:         (852) 2150-1957
http://www.cyjpaudio.com
