Rockna 推出新一代的 Wavedream DAC - 有玄機！

blau.vol

CKKeung 發表於 2015-11-12 22:51
I went to Ben Sir office with Chaucer兄 today afterwork, to listen to the new Rockna WaveDream DAC w ...

Hi Ckkeung,

thanks for coming for audition of new Rockna R2R ladder one....

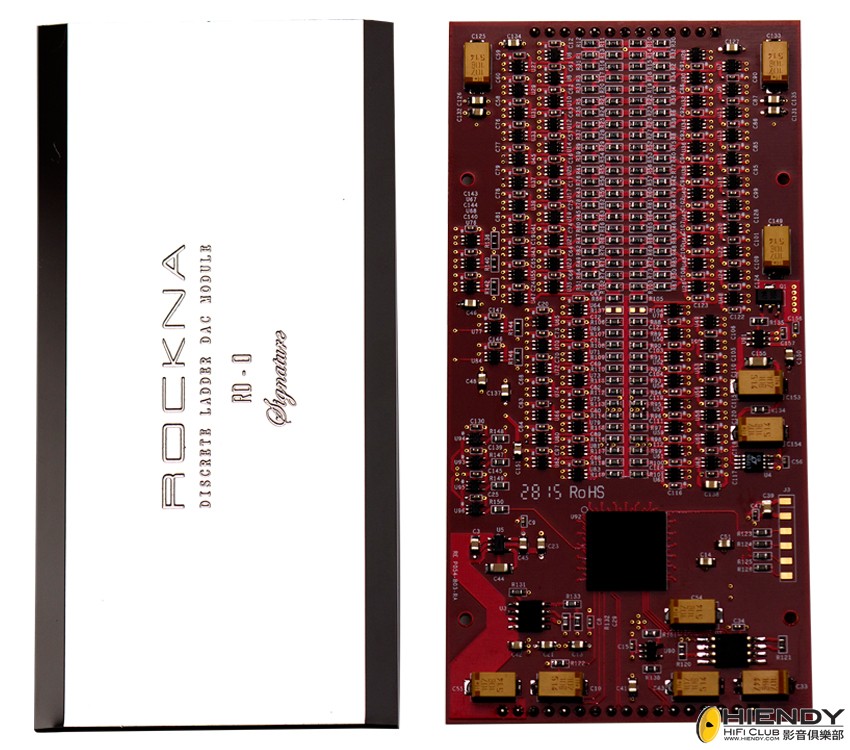

I like the New Rocka 26bit R2R ladder modules which made by theselves too!   hope the First 27bit R2R in the world will be even better......

Even all high end DAC i collected are R2R ladder DAC.  but they are quite different in sonic character....

cheers,
blau


chaucer

CKKeung 發表於 2015-11-12 22:51
I went to Ben Sir office with Chaucer兄 today afterwork, to listen to the new Rockna WaveDream DAC w ...

跟CKKeung兄whatsapp吹水前後三年，前日才首次踫頭，原因不就是Rockna 出了新版Wavedream, 大家都急不及待去Ben Sir 公司聽聽Rockna私房菜金磚版是否勝過之前MSB金磚版。 答案? CKKeung兄説了。

Rockna DAC 第一代Wavequest及第二代Wavedream 分別用過及用緊，它們同樣採用MSB module，當中換代的大躍進歸功於digital execution做得好，今次Wavedream 私房菜版做到了潤色有度及背境更黑，這應歸功於26bit resolution module 及新増的Jfet拼bipolar 的 class A output stage。

小弟偏好R2R生猛鮮活，如今私房菜又更好味, 冇辦法唔跟Rockna向前走。

mahi

Filter有無多左？我見有介紹apodising，唔知係咪即係以前的minimum phase?

好堅！咁快有order!

eds60

Ckkeung兄， 最舊的 Platinum Plus 係 46bit. 而家二十幾 bit，咁咪退步咗。

我當然知道數碼科技係進步咗。

CKKeung

eds60 發表於 2015-11-14 13:07
Ckkeung兄， 最舊的 Platinum Plus 係 46bit. 而家二十幾 bit，咁咪退步咗。

我當然知道數碼科 ...

eds60兄 ：你去聽聽咪知係退步或進步囉。

eds60

CKKeung 發表於 2015-11-14 14:08
eds60兄 ：你去聽聽咪知係退步或進步囉。

我住在加拿大，冇得聽

chaucer

mahi 發表於 2015-11-14 12:55
Filter有無多左？我見有介紹apodising，唔知係咪即係以前的minimum phase?

好堅！咁快有order! ...

Filter types remain unchanged leh.

blau.vol

mahi 發表於 2015-11-14 12:55
Filter有無多左？我見有介紹apodising，唔知係咪即係以前的minimum phase?

好堅！咁快有order! ...

Dear Mahi Hing,

Filter 無多到... 一樣是 Linear ,  Minimum 和Hybrid.  但我覺得 FILTER OFF  (Non oversampling NOS)  比以前好聲....  更直接把聲.

Cheers,
blau

xy1689

blau.vol 發表於 2015-11-16 20:48
Dear Mahi Hing,

Filter 無多到... 一樣是 Linear ,  Minimum 和Hybrid.  但我覺得 FILTER OFF  (Non ov ...

请问下rockna dac不是balance 版本也会有balance输出么？

blau.vol

xy1689 發表於 2015-11-17 06:10
请问下rockna dac不是balance 版本也会有balance输出么？

Hi xy1689 hing,

沒有.....Rockna Wavedream DAC Edition -single ended,   沒有 balanced 座的....

Best,
Blau
VOLENT

mahi

blau.vol 發表於 2015-11-16 20:48
Dear Mahi Hing,

Filter 無多到... 一樣是 Linear ,  Minimum 和Hybrid.  但我覺得 FILTER OFF  (Non ov ...

有趣喔，遲d要嚟聽聽！！

CKKeung

mahi 發表於 2015-11-17 10:23
有趣喔，遲d要嚟聽聽！！

mahi兄 ：一定要聽聽。
除了新的 R2R modules，output stage 也改良了不少！

mingson

基本版會唔會差好多？
至少要用特別單端版？
對不起，初哥唔明白嘅野太多

medjohn

Today had the chance to listen to the rockna new dac standard version

The sound stage is very large with a dark background and very good dynamic ranges

Amazed at the price point too

Really tempted!

blau.vol

CKKeung 發表於 2015-11-12 22:51
I went to Ben Sir office with Chaucer兄 today afterwork, to listen to the new Rockna WaveDream DAC w ...

Dear all,

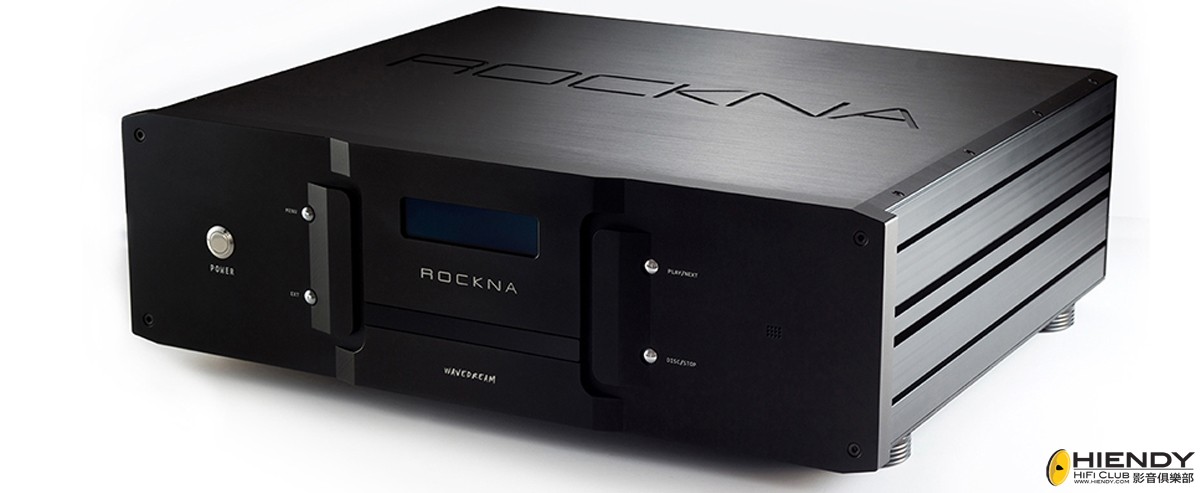

Rockna WaveDream NET 到左啦!!!

一部機已包括Media Server & CD 轉盤.  終於可以I2S 玩 24/384 and dsd  出WaveDream DAC 啦!

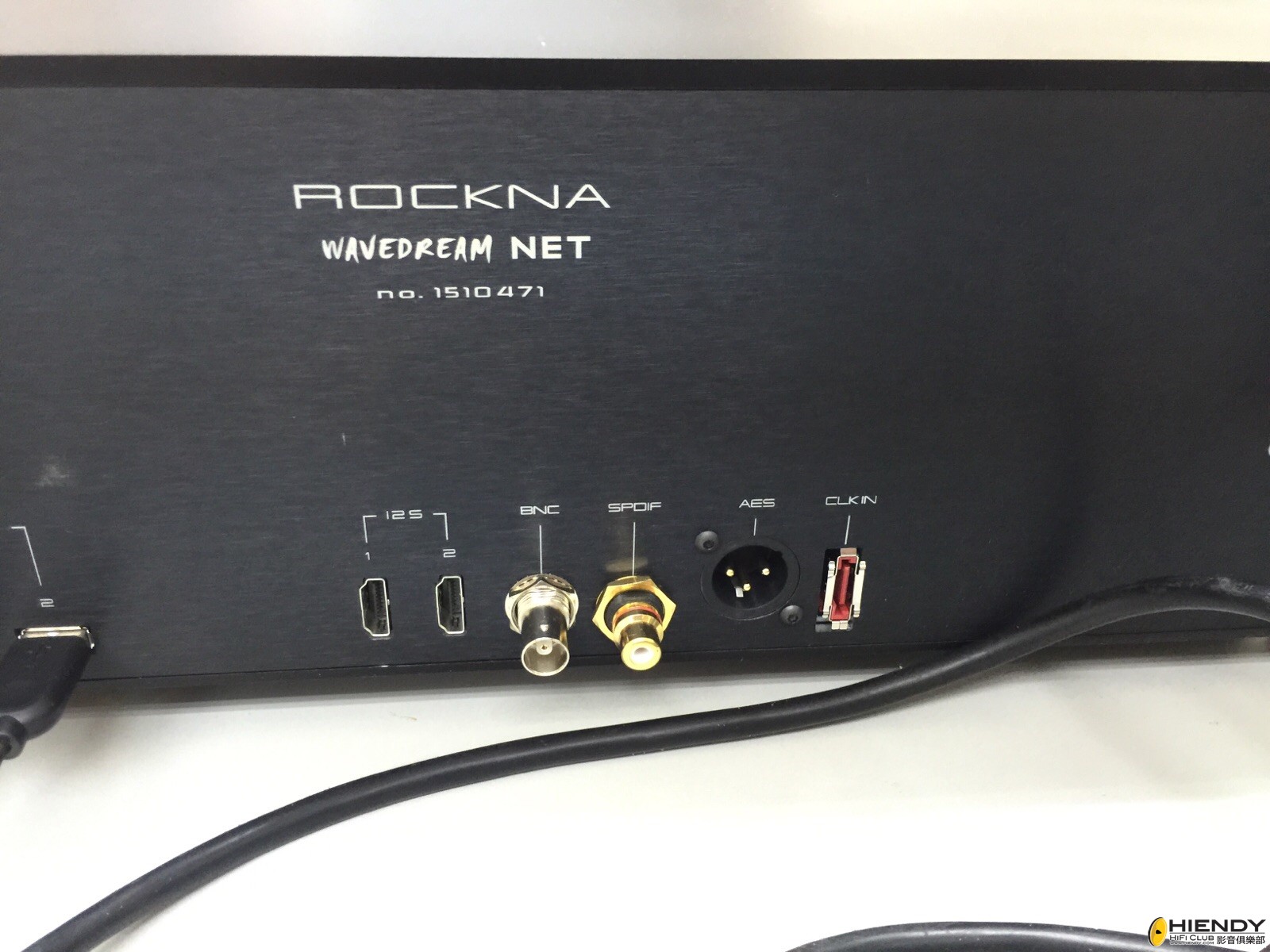

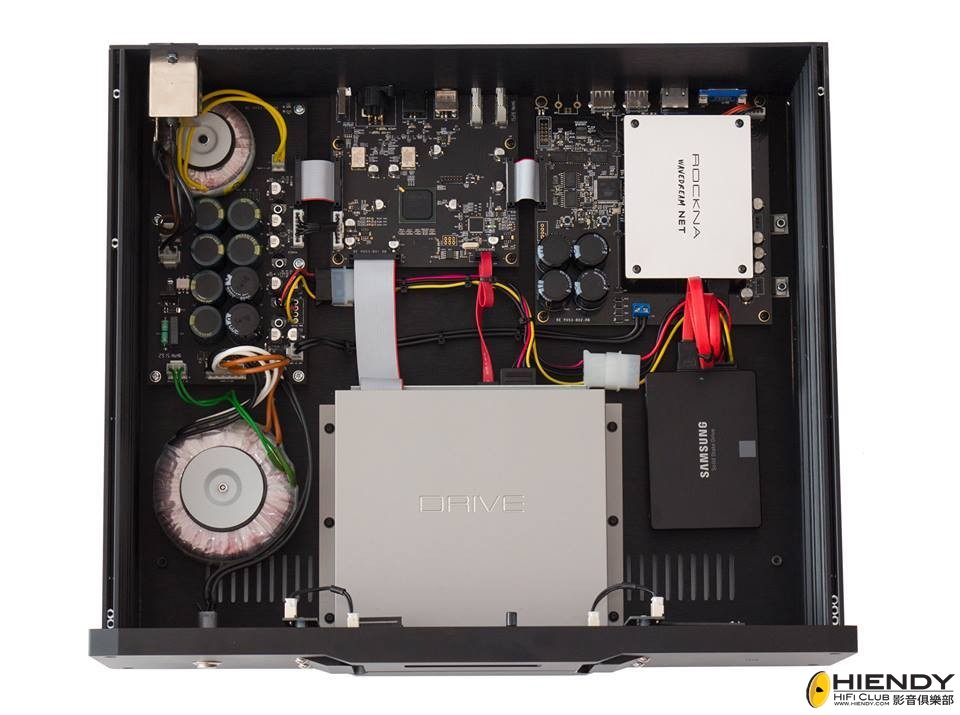

Wavedream NET 內部有一個純CD 轉盤 和1TB SSD Media Server .  內有femto clock 做 control .  可以透過I2S 出 CD  和 PCM24/384 , DSD256x ,  亦有AES/Coaxial 和 BNC 出.

CD 轉盤..
CD 轉盤透過Read till dead (at least twice the read data is identical ,  如果唔係re-read the frame) ,  將成條track 放上512MB RAM .  之後用femto clock 控制set out timing.   Transport 可以播放 16/44 ~ 24/384 data.  也可以放dsf file.  (via AES/Coaxial and BNC for DSD64x)  .      當然可以用I2S over HDMI  set out 啦.... (less jitter).

Media Server ....

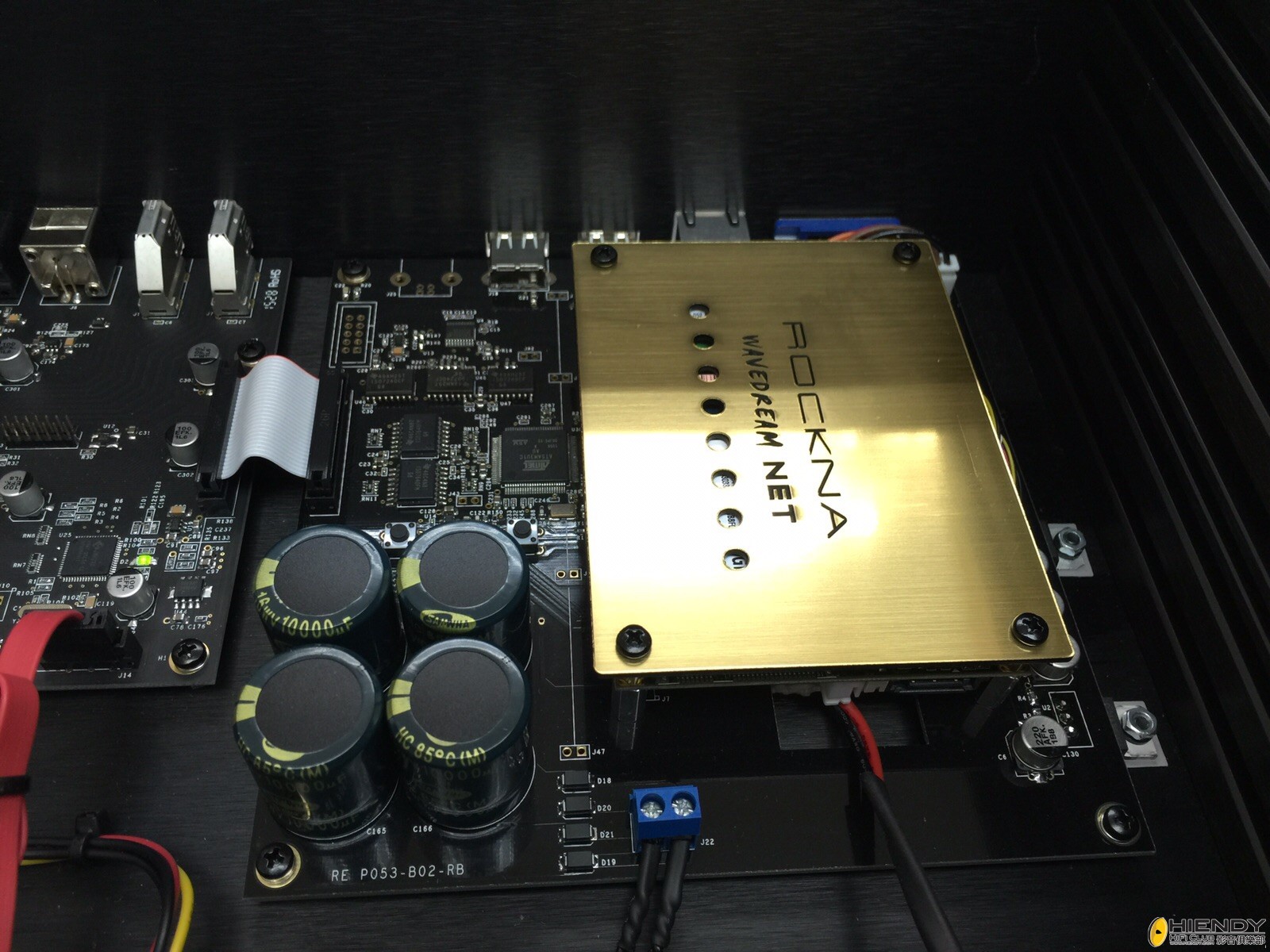

WaveDream NET 內置一個自己打做的Intel motherboard .  可以用iPAD/Android 選擇歌唱.  透過femto clock controlled FPGA  輸出24/384 和DSD256x data.


用I2S 出 digital signal 比WaveDream DAC 比以前的分析力要好.





Cheers,
Blau

chaucer

extracted from 6moons
"Review component retail: $6'600/10'000 SE/XLR Edition; $15'000/$20'000 SE/XLR Signature"

http://www.6moons.com/audioreviews2/rockna2/1.html

blau.vol

chaucer 發表於 2015-12-6 18:05
extracted from 6moons
"Review component retail: $6'600/10'000 SE/XLR Edition; $15'000/$20'000 SE/XLR ...

Dear Chaucer ,

the Rockna Wavedream DAC MSRP in Hong Kong is much less than that......, but it definitely worth that price!

Cheers,
blau

kan888

may I know the price of the new DAC ?? Thanks

analog

may I know the price of the new DAC ?? And what is the order time? Thanks

Cyrustam

may I know the price of the new DAC ?? And what is the order time? Thanks
