Pioneer N70A

Ultraleo

steveha 發表於 2014-11-28 17:19
I can stream both DSD64/128 (DFF format) from media server (i.e. DLNA/UPnP) running on Synolog Disks ...

想問吓師兄，部機咩聲底？得唔得？

steveha

得得地! 比較厚潤, 容易接受!

breadvan

It seems the N70A can stream dsf/dff over a wired network !!

https://twitter.com/stoneaudio/status/538264709360009216

ccscho

gorgeous 發表於 2014-11-28 15:28
仲有就係機面個mon出唔到中文字

It is rather surprising to see a Japanese player can't display Chinese.  Basically english speaking countries cannot decode multi-byte language is understandable, but how come   Japan products cannot handle Chinese properly?!

breadvan

ccscho 發表於 2014-11-28 20:02
It is rather surprising to see a Japanese player can't display Chinese.  Basically english speakin ...

good point, may be a FW update could address that.

gorgeous

breadvan 發表於 2014-11-28 21:19
good point, may be a FW update could address that.

希望下次出 firmware 可以出到中字同日文

Keane0828

gorgeous 發表於 2014-11-27 17:27
由於唔support SACD-ISO, 要將2tb既SACD-ISO轉返dsf

就係因為咁, 我仲係用緊PC播DSD

steveha

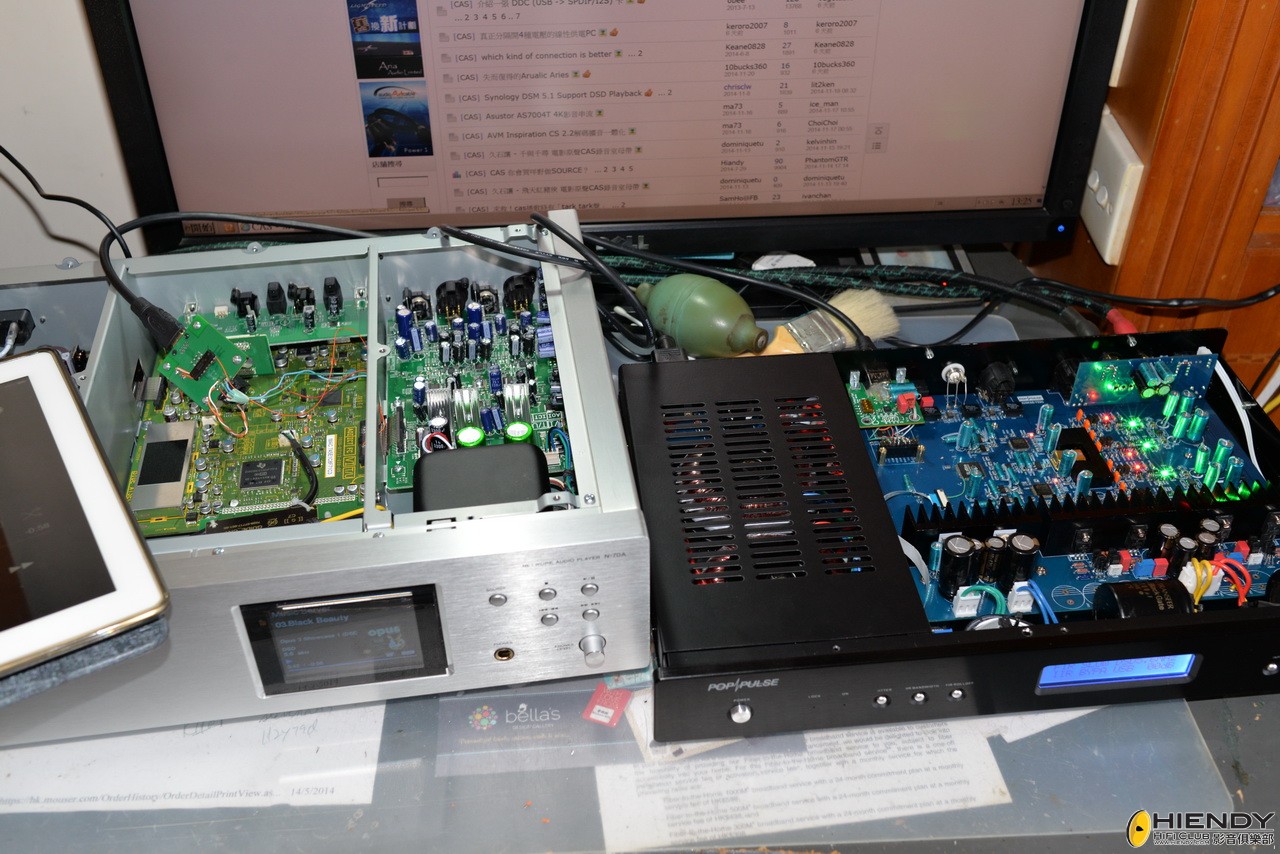

Unbelievable .  I have successfully add I2S-HDMI output into my N-70A.
Both PCM and DSD signals are natively transmitted to the dac.
On the dac side,  I have replaced the Amanero USB with a HDMI-I2S receiver card.
The most interesting part is that DSD_ON was extracted from N-70A and being buffered to the DAC via HDMI cable.

steveha

They are signing right now !!!

breadvan

steveha 發表於 2014-11-29 13:47
Unbelievable   .  I have successfully add I2S-HDMI output into my N-70A.
Both PCM  ...

wow good job but not for the faint hearted, kudos !

gorgeous

steveha 發表於 2014-11-29 13:50
They are signing right now !!!

你真係好發燒

lit2ken

嘩！全部除晒衫

steveha

可以著番衫.  In summary, I installed an I2S Send Card with buffered DSD_ON and patched 6 wires from the N70's controller board.  The N-70A's dac can be shutdown by removing its power connector. Now, my N-70A became a Native I2S music player supporting both PCM/DSD via HDMI LVDS.

alphability

有冇勁人知部N70 ESS DAC 出 IV同 LPF BUFFER 是普通OPAMP亦或Discrete 元件? 謝謝

steveha

casshan 發表於 2014-12-2 14:52
師兄好利害,用左咁多BG!
另外想請教,子板應該由原機攞電(左邊橙白線),訊號應該係右邊4條線?{:5 ...

Yes.  Left side are 5v lines and righ side are I2S signals.

steveha

alphability 發表於 2014-12-2 22:14
有冇勁人知部N70 ESS DAC 出 IV同 LPF BUFFER 是普通OPAMP亦或Discrete 元件? 謝謝

All are 普通OPAMP.

breadvan

steveha ching should offer mod service !!

steveha

Sorry. I don't have the skills and time to provide mod service.

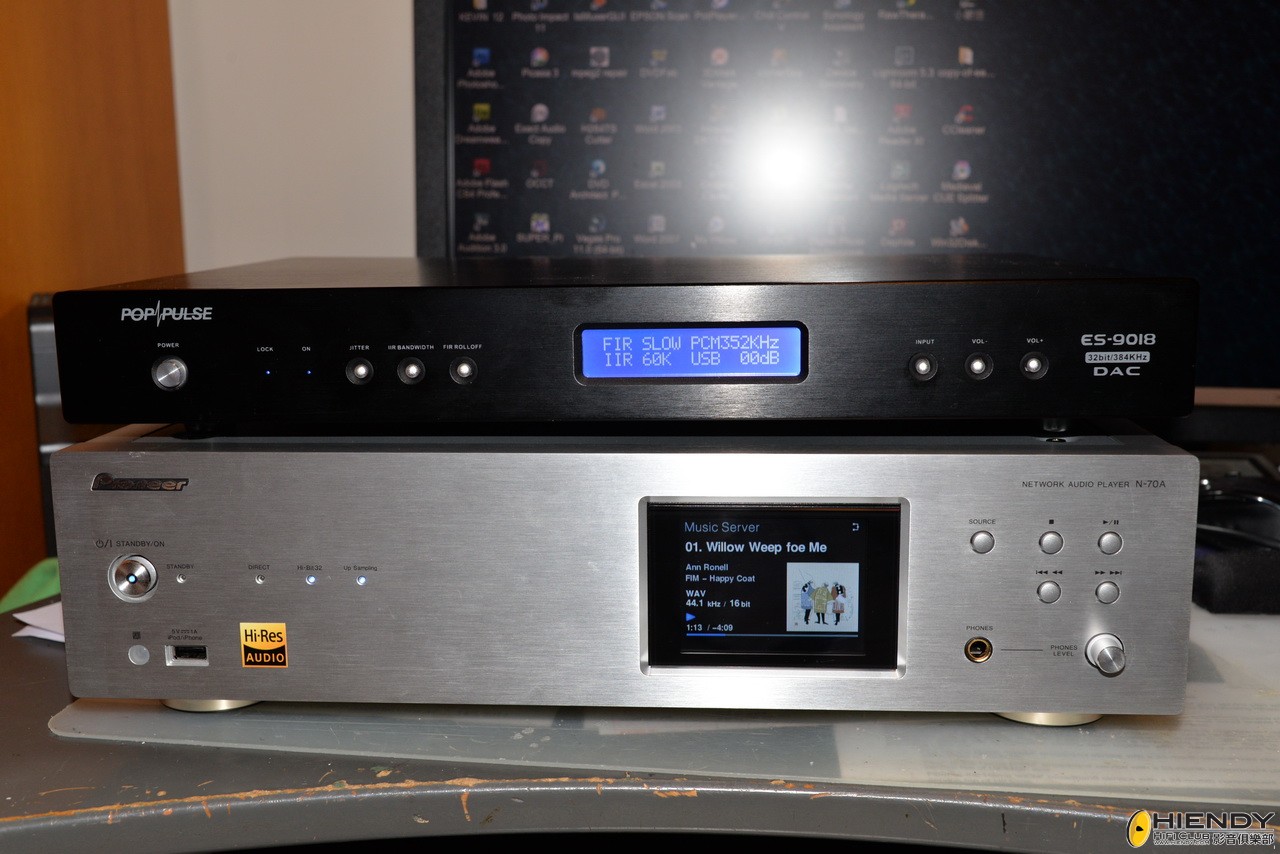

BTW, just test the Up Sampling of N-70A.  The results are very acceptable.
44.1KHz will be up-sampled to 352KHz and 48KHz family will be 384KHz.

So far, I have tested N-70A with POPPULSE (twin ES9018), Buffalo III (Single ES9018), TDA1541A, PCM1704 and AD1865. Surprisingly,  NOS AD1865 can support PCM up to 384KHz.

gorgeous

對比下邊部效果好D

steveha

想點比
