How to set Foobar correctly to play DSD128, DSD256 and DSD512

clplarry

I have owned a Singxer SU-1 DDC to work with The Holo Spring through I2S cable. In operation, I use a pc with Win10 installed and the OS for playing music is Foobar. Unfortunately, I only got DSD64 workable in the set-up. Playing DSD files with DSD128 and DSD256 couldn't be achieved. Only a line of dots displayed on the display panel of the Holo Spring. I know it may be the improper setting of Foobar to make this happened. Has any brother here the experience to make DSD128 and above workable through Foobar? Please share your experience and comments. Thanks

tleonard

First of all, we've gotta grab those files for foobar2000 below:

https://download.shenzhenaudio.com/Singxer/

You could also check this out and see if there were any issues:

https://diyaudioheaven.wordpress.com/digital/pc-software/foobar-2000-for-dummies-part-3-new-experimental-sacd-plugin-v-0-9-x/

---

If that were no go, we might have to try firmware version 2.20 (for Holo Spring) according to this page here:

https://kitsunehifi.com/product/singxersu1black/

Direct link to the firmware:

https://download.shenzhenaudio.com/Singxer/SU-1-Firmware-2017.rar

Verify that firmware version 2.20 (NOT 2.22) for Singxer SU-1 is indeed up and running, hopefully you didn't fry your SU-1 or something.

clplarry

tleonard 發表於 2017-7-24 21:41
First of all, we've gotta grab those files for foobar2000 below:

https://download.shenzhenaudio.com ...

Thank you very much for your precious information. I will try to install DSDTranscoderInstall-1.0.9 to play native dsd to see any improvement. Are you also the Holo Spring user? It seems you are very familiar with Holo Spring.

tleonard

clplarry 發表於 2017-7-24 22:19
Thank you very much for your precious information. I will try to install DSDTranscoderInstall-1.0. ...

You're very welcomed.

Well, actually I just read quite a bit about Singxer SU-1 because of so many different ways to mod the parts by replacing them with much better ones. Just learning how to improve the 1st generation while waiting for the 2nd one.

---

BTW, there's a new on the block with I2S output and supposedly it's even better when compared to Singxer SU-1:

https://www.head-fi.org/f/threads/xmos-xu208-usb-bridges-the-latest-gen-has-arrived.803111/page-246#post-13601725
https://www.head-fi.org/f/threads/matrix-x-spdif-2-a-singxer-su-1-killer.855159/#post-13598256
http://www.usaudiomart.com/forum/viewtopic.php?p=6455#p6455

Matrix X-SPDIF 2 even came with both 45.1584MHz and 49.152MHz clocks, we could go nuts and replace them with NDK DuCULoN if we want but that would be way overkill.

clplarry

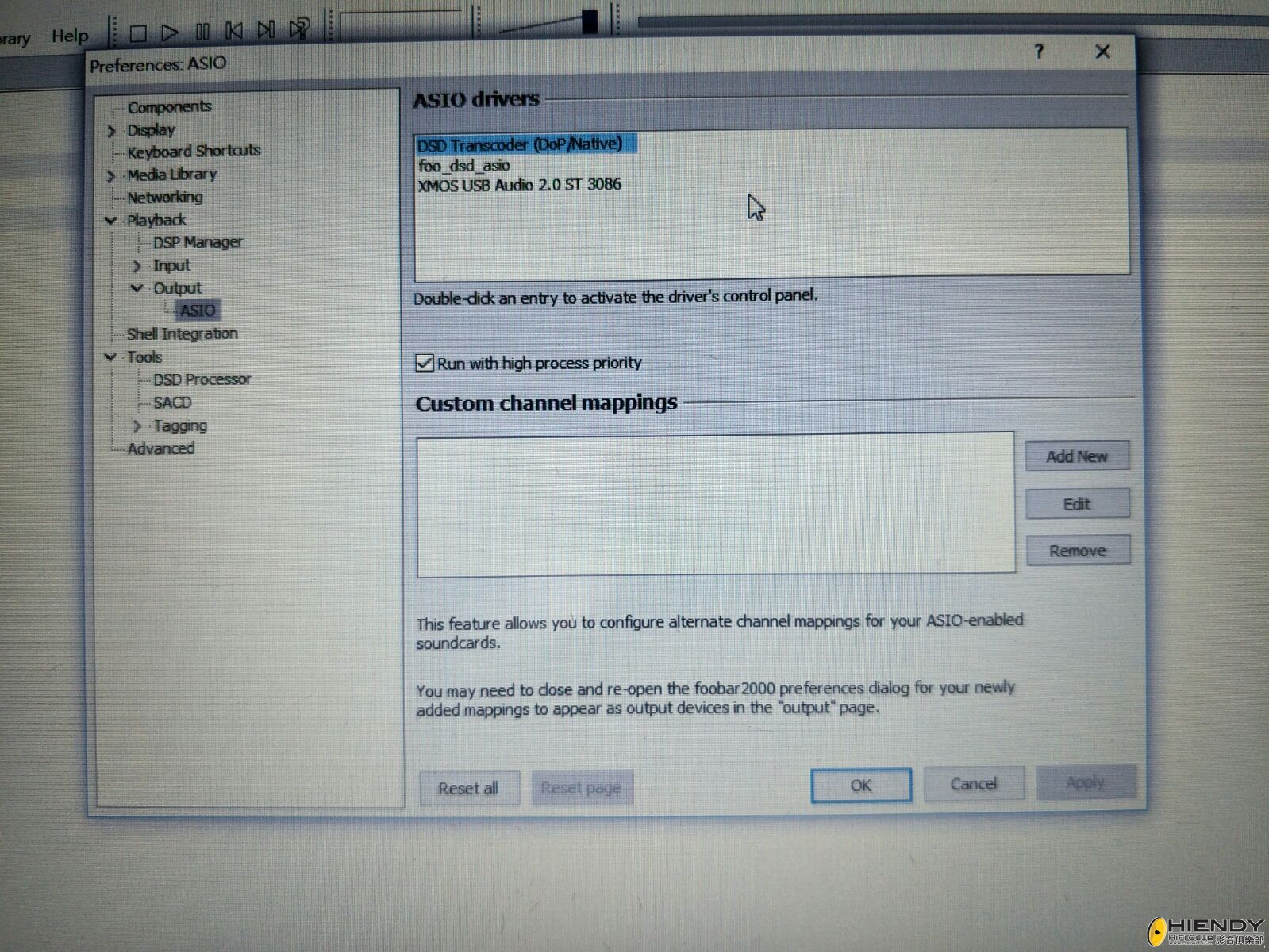

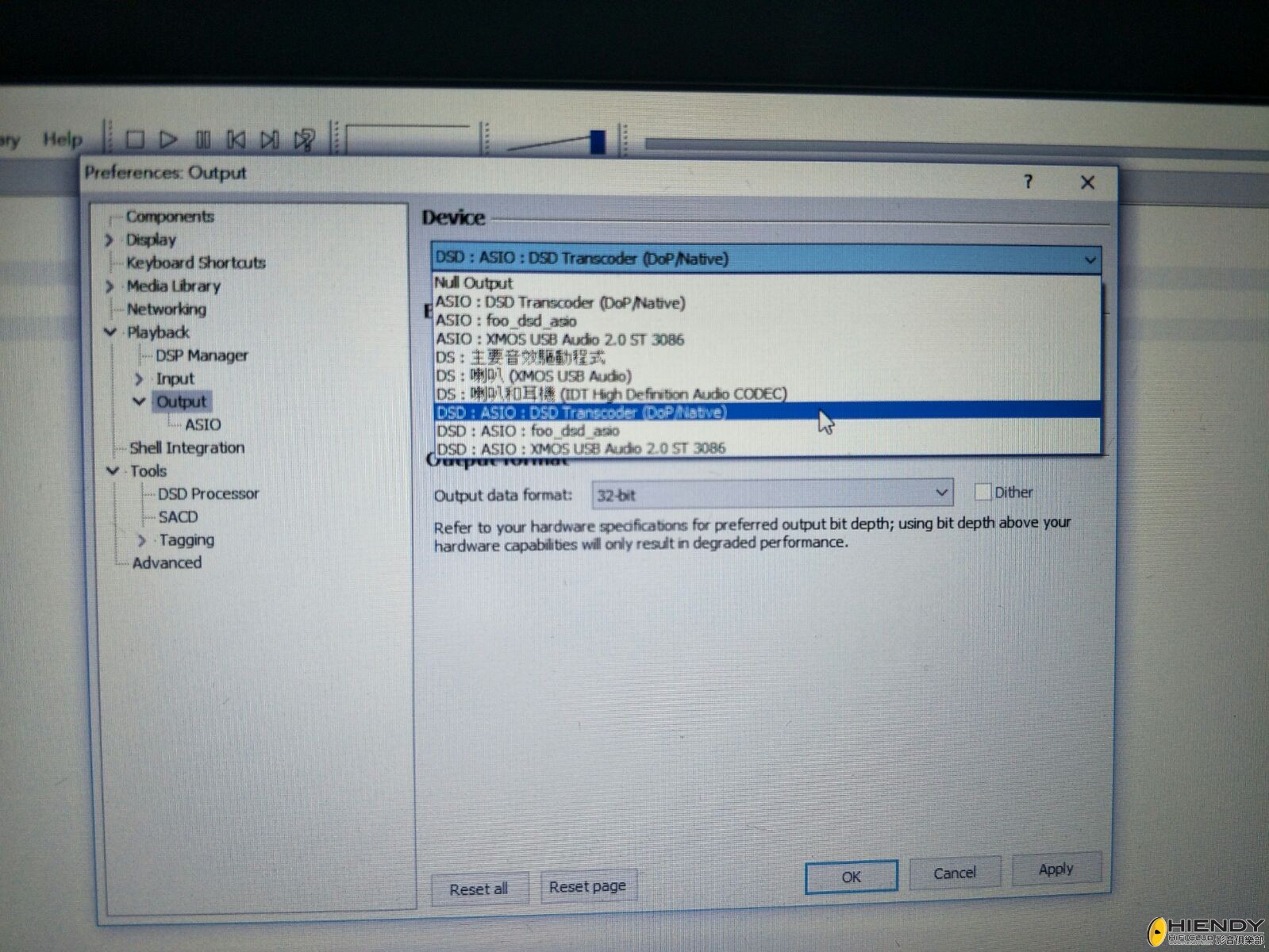

I tried to install the DSD Transcoder (DOP/Native) this morning but couldn't open the control panel by double clicking of it. Though I have selected it as the output device, it couldn't be activated to work when I played any music files with error message (unrecoverable playback error: could not open the driver)



clplarry

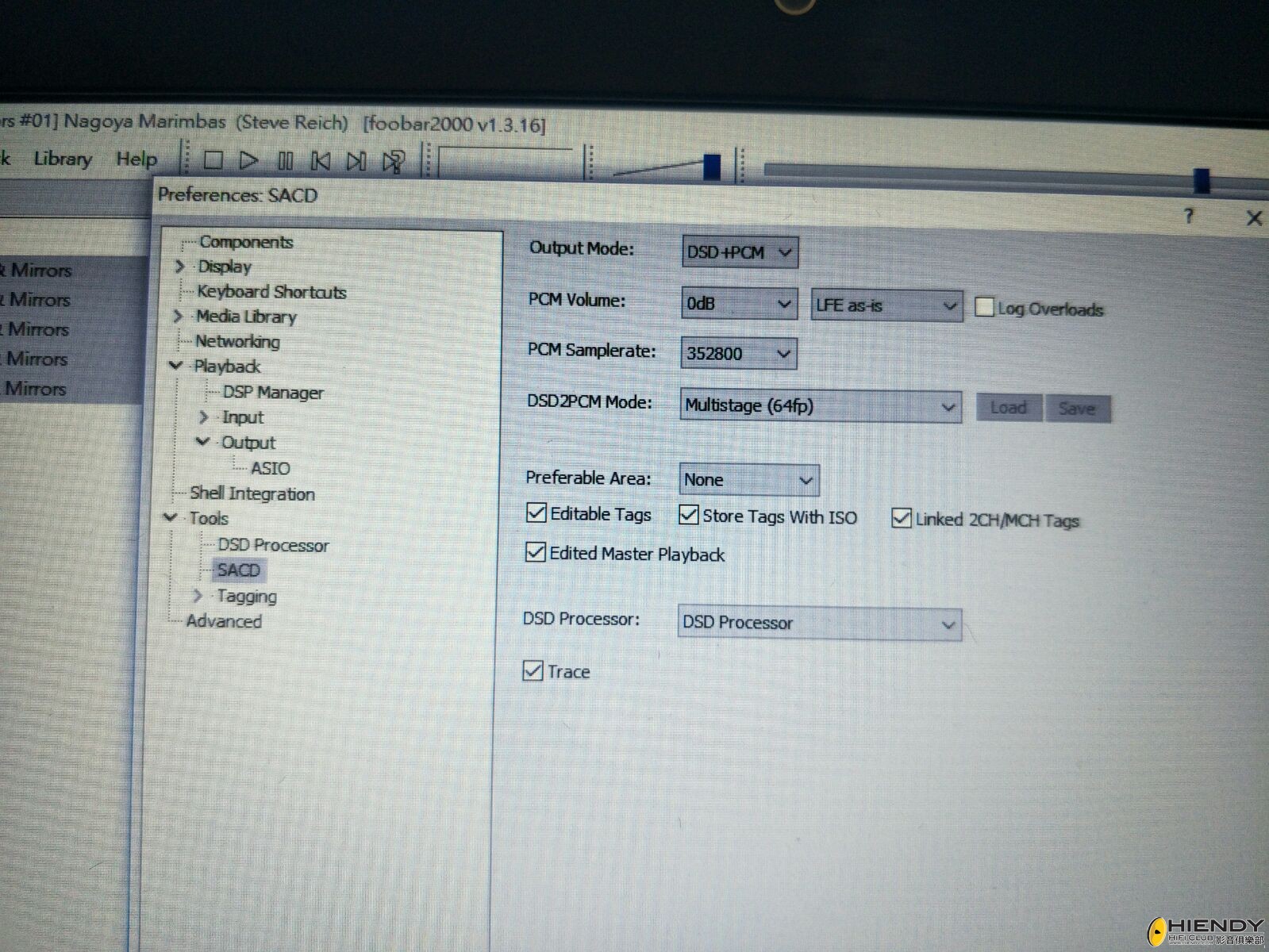

One interesting condition is that when I selected the SACD output mode to DSD only, it could play all DSD files with the correct bit rate shown on the display panel of the Holo Spring but no any sound was produced for DSD files  (actually the music was playing with the operation cursor moving slowly.)

But if I selected the SACD output mode to DSD+PCM, it could only play DSD files to DSD64 with correct bit rate showing on the dispaly. All DSD files for DSD128 and upward couldn't be played with a line of dots on the dispaly only.


So, if the sound output for DSD output mode could be achieved, the problem would be solved accordingly

tleonard

clplarry 發表於 2017-7-25 10:50
One interesting condition is that when I selected the SACD output mode to DSD only, it could play al ...

No worries, one step at a time and here we go:

Step #1 = Download the firmware version 2.20 for Singxer SU-1 and install it if that weren't done yet.

Direct link to the firmware:

https://download.shenzhenaudio.com/Singxer/SU-1-Firmware-2017.rar

Instructions:

https://www.computeraudiophile.com/forums/topic/29553-my-very-mini-review-of-the-singxer-su-1-ddc/?page=14#comment-661414

Once you install it, go to your Program Files on your hard drive, and look for the XMOS folder.  In that folder go to the folder USBAudioStDriver_3086.  From that folder run the exe "xmosusbaudiost3086_dfuapp.exe".  Once you run that, the application will ask you for the location of the firmware upgrade file.  That is the file Tim sent you.  Save that somewhere on your PC and select that.

Make sure that firmware version 2.20 (*NOT* 2.22) is indeed up and running before we proceed.

---

Step #2 = Power off Singxer SU-1 first, and then adjust the DIP switches (i.e. jumpers) as follows:

https://www.computeraudiophile.com/forums/topic/31500-i2s-compatibility-issue-between-w4s-dac2-singxer-su-1-two-beatiful-pieces-of-hi-end-products/#comment-653097

<3> Holo Audio
No.1: DATA-/DSDL-  No.3: DATA+/DSDL+
No.4: BCLK+/DSDCLK+  No.6: BCLK-/DSDCLK-
No.7: LRCK-/DSDR-  No.9: LRCK+/DSDR+

Here's the manual and you could take a look at page 11:

https://download.shenzhenaudio.com/Singxer/Singxer-USB-Audio-Class2-Driver/SU-1%20digital%20interface%20user%20manual%20_20160708.pdf#page=11

Please don't power Singxer SU-1 back on yet, let's wait until Step #5.

---

Step #3 = Uninstall the USB driver for Singxer SU-1 and reboot Windows.

I just learned something new from this post here:

https://www.computeraudiophile.com/forums/topic/29553-my-very-mini-review-of-the-singxer-su-1-ddc/?page=13#comment-661103

I received similar instructions to get my SU-1 to drive native DSD512 over I2S into my Holo Audio Spring DAC: uninstall the SU-1 USB driver and install the Spring DAC USB driver and use it with the SU-1.  The Spring's USB driver will install for the SU-1.

---

Step #4 = Download and install the USB driver for Holo Spring.

Once you've rebooted Windows, download the official USB drivers for Holo Spring:

USB driver WIN10: http://pan.baidu.com/s/1nvrVMPV
USB driver WIN7 / 8: http://pan.baidu.com/s/1mhR92m0

Install the USB driver that's applicable for your Windows version and then reboot once more.

---

Step #5 = Power Singxer SU-1 back on and try again.

Hopefully that's working for you since more than one owner of Holo Spring confirmed that's working for DSD512 over I2S.

clplarry

tleonard 發表於 2017-7-25 15:50
No worries, one step at a time and here we go:

Step #1 = Download the firmware version 2.20 for S ...

The new firmware of Singxer SU-1 ver2.2 was upgraded by Jo two weeks ago. I installed its USB driver and Foobar on wind10 and set the foobar plugins according to the Singxer SU-1 Manual. But no way, playing DSD 64 and all PCM files are OK except DSD128 and above with the SACD output mode set to DSD+PCM. Setting the SACD output mode to DSD would have all PCM and DSD files including DSD64, DSD128 and DSD256 readable but there is no sound output at all. As I don't have any DSD512 file, I couldn't test its availability. Now I only use the Raspberry + RuneAudio to play DSD128 and DSD256.

clplarry

tleonard 發表於 2017-7-25 15:50
No worries, one step at a time and here we go:

Step #1 = Download the firmware version 2.20 for S ...

Having read the links you provided, I tried to install the Holo Spring Driver onto my PC and selected it as the output device. The Singxer SU-1 did work with the Holo Spring USB driver as its own but the case is just the same that it couldn't play DSD 128 and above.

DIO

請問比錢用jriver 係唔係就咩都不用set唔駛煩? (只set output device)

clplarry

DIO 發表於 2017-7-25 20:39
請問比錢用jriver 係唔係就咩都不用set唔駛煩? (只set output device)

As I haven't tried any music player except Foobar, I know nothing about.

clplarry

tleonard 發表於 2017-7-25 15:50
No worries, one step at a time and here we go:

Step #1 = Download the firmware version 2.20 for S ...

Hi Brother tleonard
The case almost made me mad for playing DSD 128 and DSD 256 files. I tested it in AES connection this afternoon. Of course, the answer is uncessessful. But, the miracle happened when I swithched it back to I2S connection. Everything was OK with DSD files excluding DSD512 cause I don't have any DSD512 format. That occurance made me very excited and happy as I were freely released from annoyance. Though so many DSD128 and DSD256 files were successfully played, I have a DSD128 album named Adele 25 which was found failed on playing just like before. I don't know the reason why? I am afraid the case will be back to failure once I removed the AES cable from the connection between the Singxer and the Holo Spring DAC! I wonder whether the connection of AES in the system will bring any circuit relationship for I2S connection on play back?
Larry

tleonard

clplarry 發表於 2017-7-26 19:45
Hi Brother tleonard
The case almost made me mad for playing DSD 128 and DSD 256 files. I tested it ...

Hi Larry,

You might wanna talk to Mr. Chen and they're listing their e-mail addresses below:

http://www.singxer.com/contact.jsp

Maybe they'll determine if that problem with DSD128 and DSD256 were caused by something related to the hardware?

clplarry

tleonard 發表於 2017-7-26 20:42
Hi Larry,

You might wanna talk to Mr. Chen and they're listing their e-mail addresses below:

Yes, I emailed to Leter (Mr. Chen) days ago. Leter said it might be the firmware of the Holo Spring is too old for DSD128 and DSD256 and recommended me to ask for help from Jeff of Holo to send me the latest version of firmware for my upgrade. Though I have sent emial to Jeff asking about the queries on the Holo Spring, he just occasionally gave me one or seldomly two of the reply. I think Jeff of Holo is not as active as Leter of Singxer in case of customer care. I have illustrated the happening occurred this afternoon to Leter of Singxer through e-mail asking for his professional analysis and waiting for his reply.

clplarry

Finally, I could play DSD512 fluently not through Foobar but JRiver instead. The sonic quality of JRiver is better than the free ware - Foobar.

lumgwa

Congratulations Larry,
Think the situation relates to individual playback software and settings.
My SU-1 and Holo are with original firmware as acquired in Dec 2016.  There is no problem playing DSD256 in NOS mode using JPlay, with either AES or I2S connections.  My system is Win 10, fully loaded into ram during computer booting.
What is the version of jRiver that you succeed to run DSD512 ?

clplarry

lumgwa 發表於 2017-8-31 09:54
Congratulations Larry,
Think the situation relates to individual playback software and settings.
My ...

Hi brother lumgwa
To my understanding, only I2S connection of the DAC could handle DSD128 and upwards. Connections through coaxial or AES can only manage DSD64 only. So, for DSD128 to DSD512 or even DSD1024 must use I2S cable connect to have the job done. My JRiver is  JRiver Media Center 20.0.52

lumgwa

Thx Larry.
