[擴音器] 純"A"家族 C-600f/M-600A

[複製鏈接]
發表於 2011-8-15 17:21:08 | 顯示全部樓層 |閱讀模式

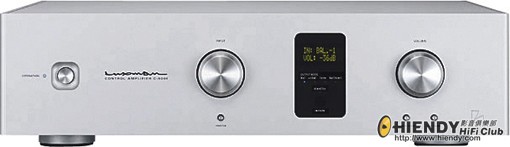

C-600f 控制放大器
輸入靈敏度/輸入阻抗: 300mv/47.5kΩ,300mv/67.0kΩ(XLR)
總諧波失真: <0.009%(20Hz~20KHz)
頻率響應:20Hz~20KHz(+0,-0.1dB),5Hz~116KHz(+0,-3.0dB)
訊噪比: 123dB(IHF-A)
耗電量: 21W
體積(WxHxD):  440×117×407mm
重量:13kg
備有全功能遙控器

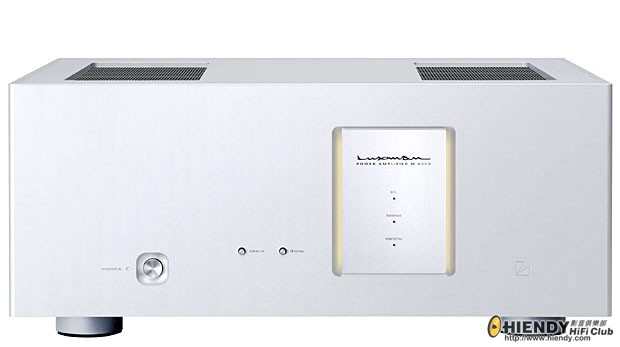

M-600A 後級擴音機
連續有效輸出: 30W+30W(8Ω),60W+60W(4Ω),120W(8Ω)/BTL
最大輪出: 240W+240W(1Ω),240W(4Ω)/BTL
輸入靈敏度/輸入阻抗: 550mv/30W(8Ω), 550mv/51kΩ(RCA) , 550mv/67kΩ(XLR)
總諧波失真: <0.009%
频率響應: 20Hz~20KHz(+0,-0.2dB),DC~130KHz(+0,-3.0dB)
訊噪比: 114dB(IHF-A)
消耗功率: 290W
體積(WxHxD): 440×189×420mm
重量: 26.5kg
發表於 2011-8-18 21:15:10 | 顯示全部樓層
我現在用緊c600f, 後面有個ground 接口,想年知道有嘜用途?
回復

使用道具 舉報

 樓主| 發表於 2011-8-18 23:50:47 | 顯示全部樓層
本帖最後由 Luxman 於 2011-8-18 23:54 編輯
我現在用緊c600f, 後面有個ground 接口,想年知道有嘜用途?
paulc 發表於 2011-8-18 21:15



    用途實多太多,現在本人只能說出一部份。
從前很多人玩單點接地,所有器材都不接地線,只有前級會接上,因為很多產品接地時都會產生不少雜訊樂及影響其表現,反而前級接上後會令到背影聆靜及增加兩極延伸力..........,有的人說如後級的電源線不接地線,而用其它線材地ground接到前級上,效果有更顯著的表現,有的人說訊源的groung接到前後上,更有異曲同功心妙,但到現在你說這好,他又說這樣好,還沒有一定的準則。


但Luxman知道音樂化學作用實在多得很,所以會做足準備,方便用家作更多的玩法。而廠方亦說這接地方法可以背境聆靜度及其他表現都會有所提升。

不單是C-600f,其他的前/後級及合拼機都附有接ground的接線柱。
回復

使用道具 舉報

發表於 2011-9-6 18:55:08 | 顯示全部樓層
同590AII or 590AX怎比较?
回復

使用道具 舉報

發表於 2011-9-6 19:55:41 | 顯示全部樓層
我現在用緊c600f, 後面有個ground 接口,想年知道有嘜用途?
paulc 發表於 2011-8-18 21:15



    可以用黎接地盒
回復

使用道具 舉報

發表於 2011-9-16 22:52:50 | 顯示全部樓層
想請問M600a, 有幾大gain? Damping factor?
回復

使用道具 舉報

 樓主| 發表於 2011-9-18 00:38:24 | 顯示全部樓層
本帖最後由 Luxman 於 2011-9-18 00:46 編輯
想請問M600a, 有幾大gain? Damping factor?
e679 發表於 2011-9-16 22:52



Luxman M600A

The main features of M-600A
Pure Class-A rated output of 30W at a high level that combines the pursuit of musicality, driver and high scalability.
Follow a linear output under various load speakers are, 120W maximum instantaneous full (2Ω) achieved.
Darlington configuration of four parallel push-pull output stage compliant 3 · ODNF Ver.2.3.
Asked the strength of the low-temperature, high power transformers with EI-type regulation of 680VA.
Loop-less structure that insulates the chassis and the effects of magnetic field generated by the current rise • Chassis grounding impedance. Protect them from unwanted vibration micro-level music signals delicate · attached cast-iron leg gradient.
The resistors and capacitors • The adoption of a commitment worthy of plenty of high-end custom parts.



    Continuous RMS Output 30W +30 W (8Ω) when / stereo, 60W +60 W (4Ω) when / stereo, 120W (8Ω) / hour mono
Maximum output 240W +240 W (1Ω) when / stereo, 240W (4Ω) / hour mono
Input sensitivity 550mV/30W (8Ω)
Impedance Unbalanced / 51KΩ input, balanced / 67KΩ
Total Harmonic Distortion 0.009% or less (1KHz/8Ω), less than 0.1% (20Hz ~ 20KHz/8Ω)
20Hz to 20KHz frequency characteristics (+0,-0.2dB), DC ~ 130KHz (+0,-3.0dB)
Ratio 114dB S / N (IHF-A)
Damping Factor 350/8Ω
Unbalanced line input 1 balanced 1 line
One line output of large speaker terminals
Attachment Front Panel Operation switch, input selector switch, meter display switch
[Rear] main power switch, BTL switch, signal ground terminal
Remote input terminal, line phase sensor, AC inlet
290W power consumption (Electrical Appliance and Material Safety Law), 290W (at no signal), 3.8W (standby)
Dimensions, weight 440 (W) × 189 (H) × 420 (D) mm, 26.5Kg
Cable Remote
