CAS/電源 Asia Weiss - PSU101 - 1A power supply

ok102006

Swiss made

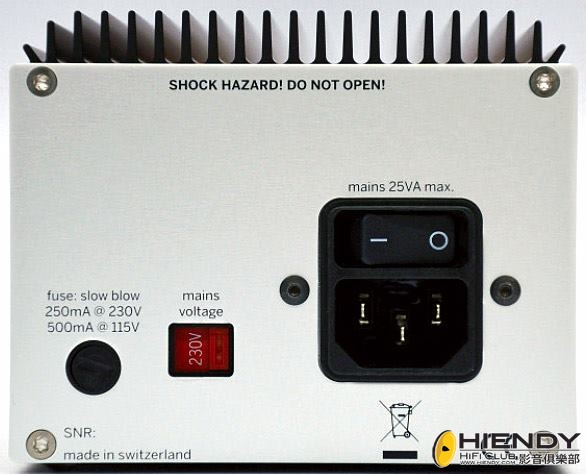

Mains input on a IEC inlet

Mains voltage selectable 230V / 115V (100V)

Power switch

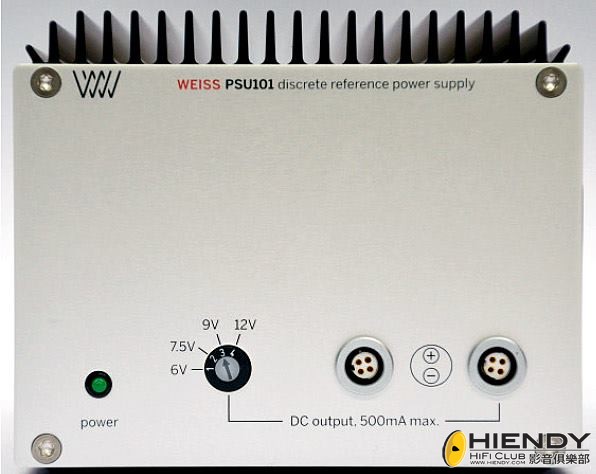

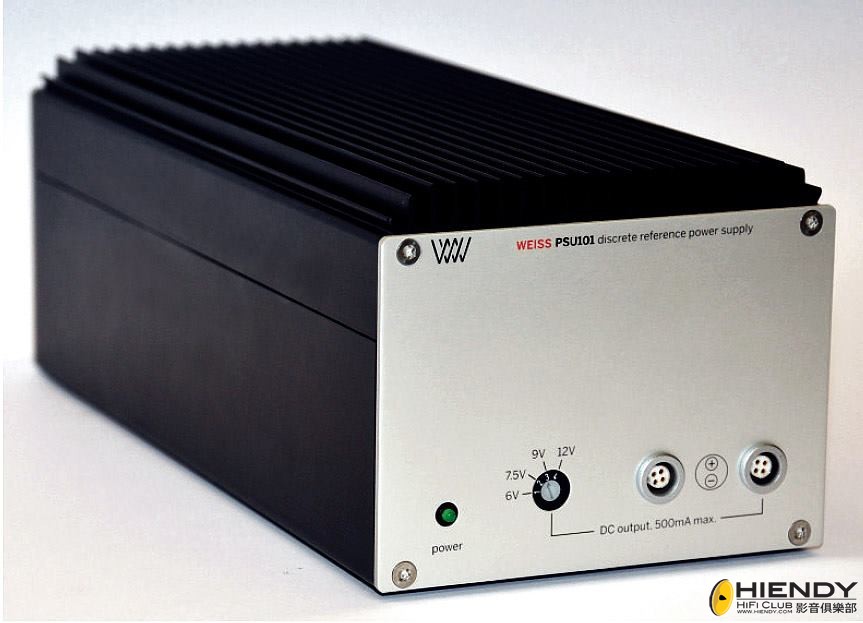

DC output on two parallel, highest quality Fischer connectors

Output voltage selectable from 6V, 7.5V, 9V and 12V at up to 1000mA (1A)

Short circuit proof output

Discrete, analog, low noise, high speed voltage regulator

Toroidal mains transformer

Very low ESR power supply capacitors

LED indication for power on / off conditions

fm31331

willip

With only 1A, what is it intended to drive?

ok102006

most wall-plug power adapter with small current should be okay
for example, iphone 5s, usb 3.0, both are using 5V and 1A

t1174

前面dc output 不是寫明 500mA (=0.5A) only? 是兩個 port 加上來先有一A.

diamondblack

t1174 發表於 2014-4-15 15:17
前面dc output 不是寫明 500mA (=0.5A) only? 是兩個 port 加上來先有一A.

所以我真是想不出有什麼用。

Siuping

只是輸出十幾Watt 但 case 要咁大

willip

0.5A?  Cant even charge a Samsung Note 3 or iPad.

nicknick

供電俾router或者ok

m40

應該兩個輸出share，即total 加埋出到1A，如只用一組便出到盡1A
用兩組安全計每組唔好多過500mA

註意越高A，noise亦相對較高。如只需用少過1A，買細好過買大

cwtim01

Pure speculation:

Given the massive heatsink for 12V/1A max, this is probably a shunt regulator. A shunt regulator will burn all the power as heat under no load, pretty much like a class A amp, so including the dropout voltage it'll dissipate more than 15W constantly.

The output port has 4 pins, so it's probably using a 4 wire scheme with 2 wires for voltage sensing, improving further the load regulation and lowering the output impedance further.

It will be an overkill to use a shunt regulator for CAS, which typically involve high current, and a (relatively) more effective series regulator would be sufficient for the job.

Ideal application for shunt regulators are typically below a few hundred mA, like buffers, line stage, pre-Amp, DAC, ... etc.

kentpoon

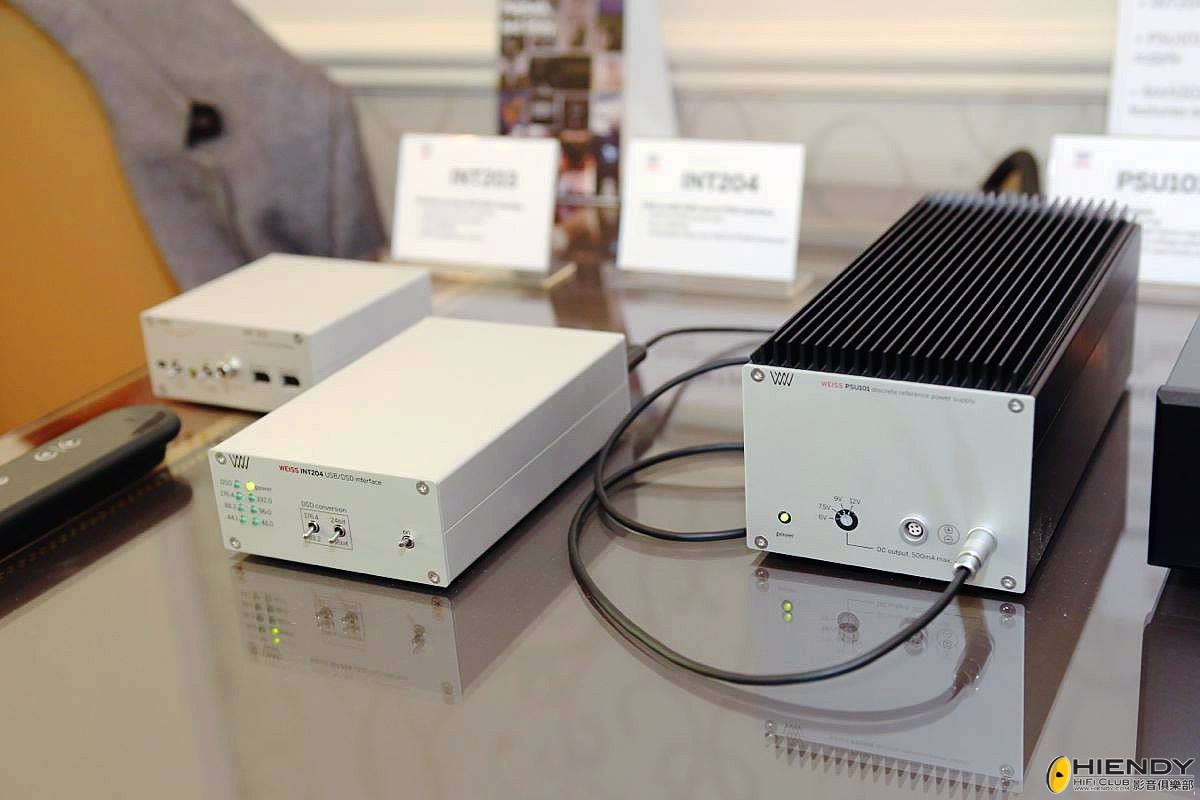

The first photo has shown it is powering the INT204.
Weiss INT204 USB(DoP) interface consumes about 0.15A

I thought audiophile loves overkill design?
PSU101 is an universal power supply, so it doesn't just built for INT202/203/204 digital circuit........the speculation is right.

tleonard

原來有相睇喇：

http://www.asiaweiss.com/2013/2013/10/int204



隻牛係 Amgis L01-6361：

http://www.amgistoroids.com/assets/files/L01%20Series%2050%2060%20Hz%20PC%20Mount%20Toroidal%20Transformers.pdf

http://www.digikey.com/product-detail/en/L01-6361/TE2257-ND/2137087

好想比較吓 Toroidal Transformer 同埋 OCC 單晶銅鍍銀線 O 牛嘅分別。
