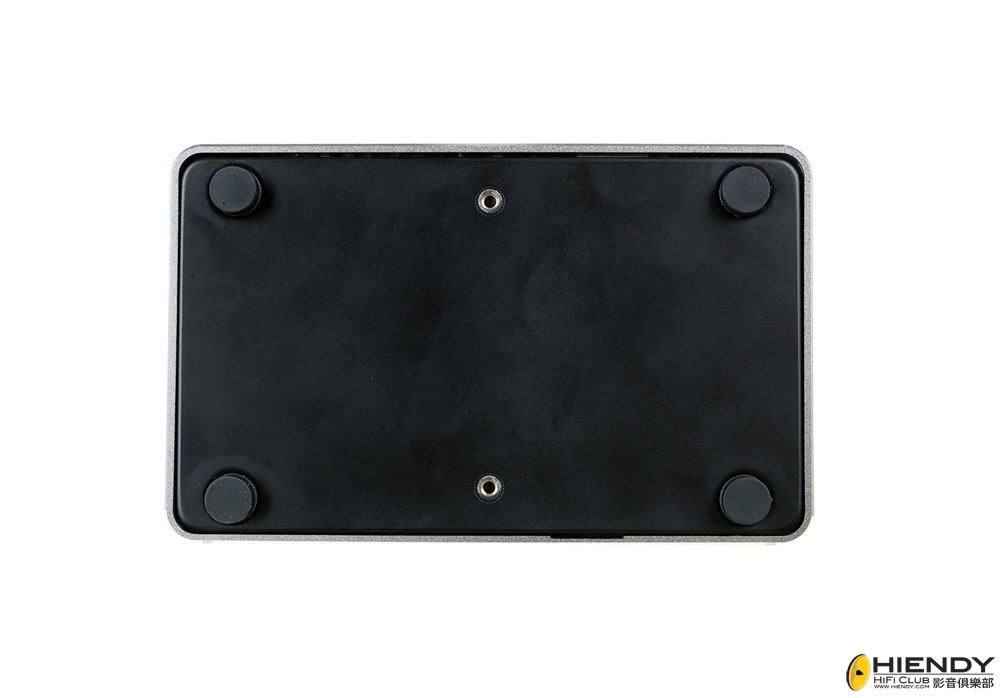

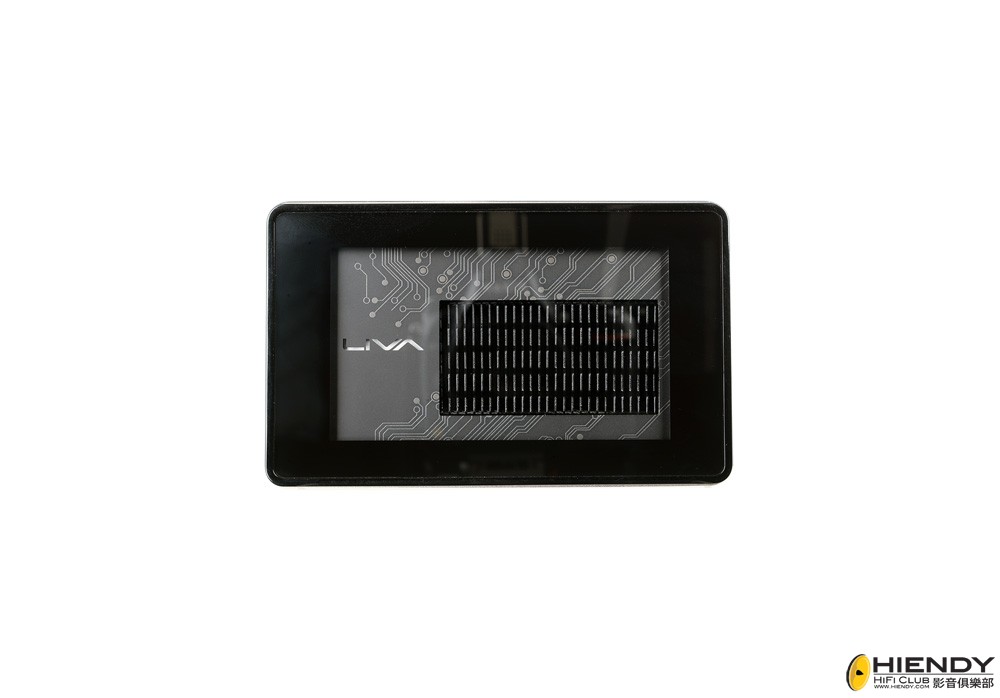

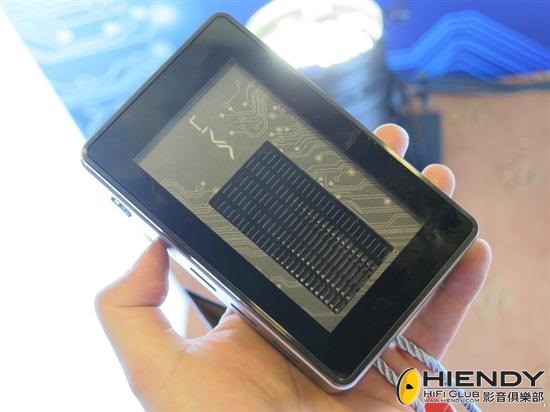

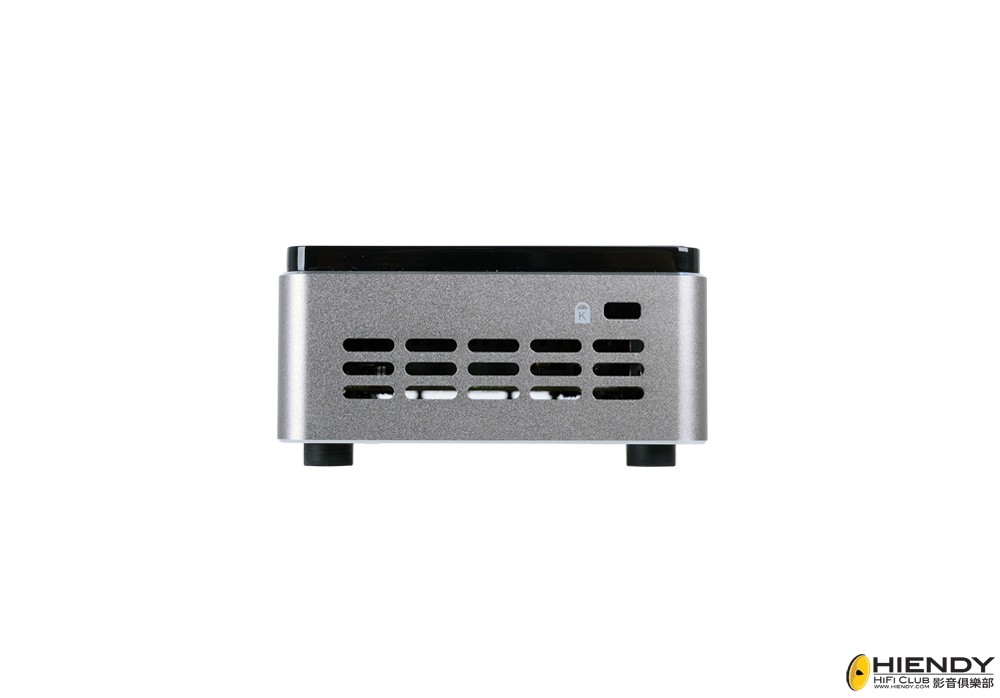

Taiwan ECS Liva Core Mini PC

ok102006

ECS Liva Core

Intel Broadwell Core M-5Y10C SOC CPU

• Average CPU Mark 2655, close to Core-i5 level.
• 4M Cache, up to 2.00 GHz, Intel HD Graphics 5300.
• 2 cores, 4 threads.
• 14nm, 4.5W TDP, very efficient.


• DDR3L 4GB x 1
• 80-120GB M.2 SSD x 1
• internal mic x 2, Windows 10 ready (voice-control with Cortana)

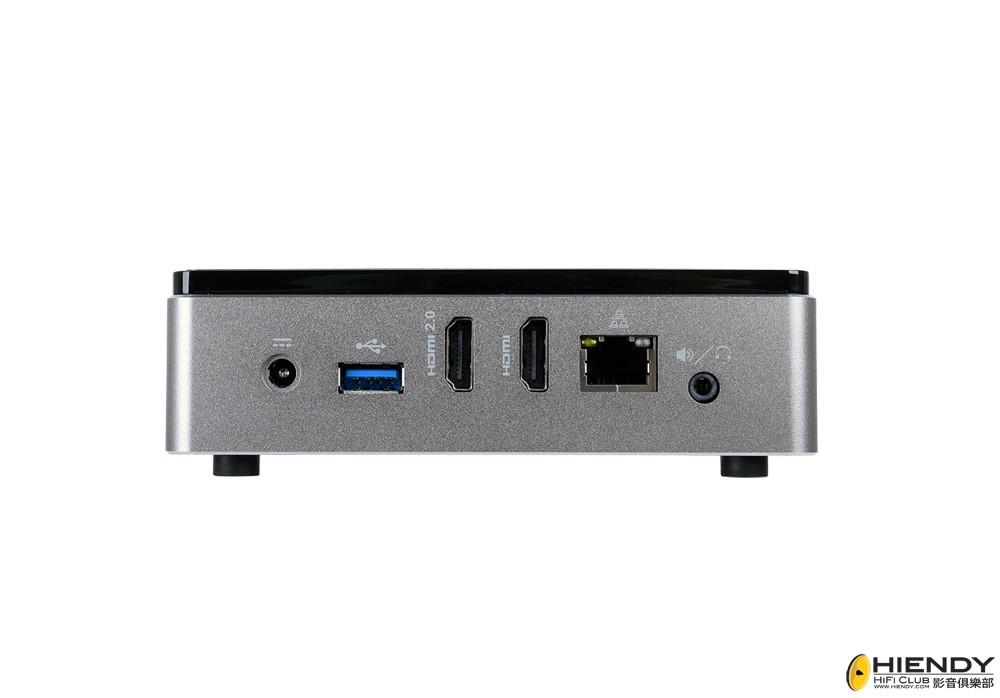

• Gigabit LAN

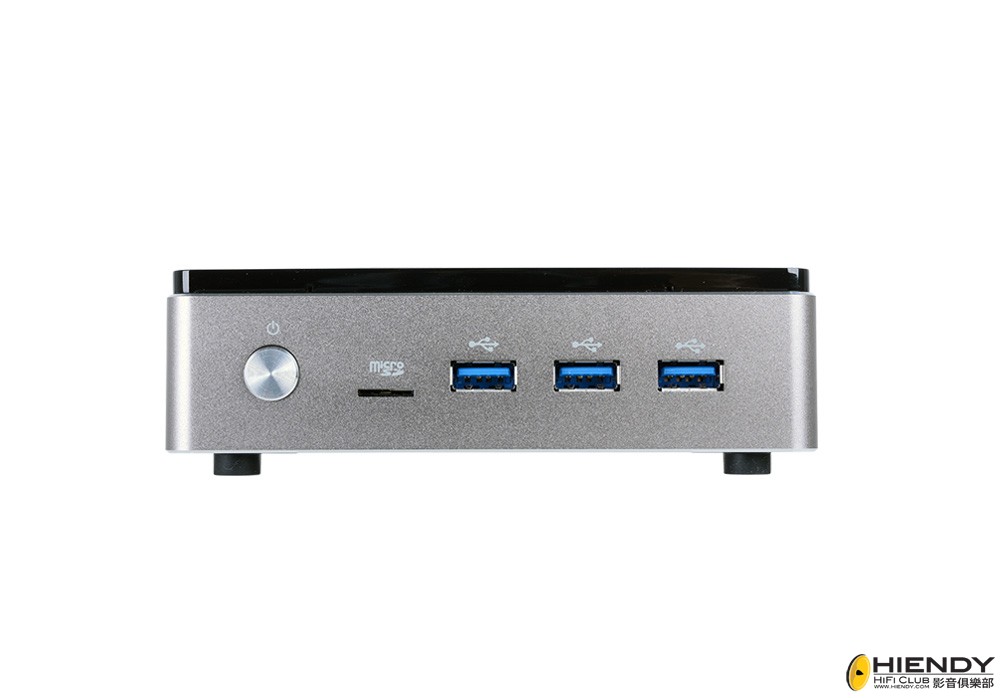

• USB3.0 Ports x 4 (one for charger even during power off)
• HDMI Ports x 2, support Dual independent Display (max 2560x1600@60Hz)
• Combo headphone and mic Jack x 1
• WiFi 802.11ac & Bluetooth 4.0
• Micro SD Card Reader
• Input: AC 100-240V, Output: DC 19V / 3.43A
• Idle 3.83W and full load 18.2W
• With VESA mount


Not 4K ready, but fanless and fast CPU.
Good for Windows+Jplay as CAS.

hksarac

Ram 只得4G, 8g 就差不多，Jplay buffer set大些都不夠。

JackieEason

hksarac 發表於 2015-6-24 17:05
Ram 只得4G, 8g 就差不多，Jplay buffer set大些都不夠。

如果剩係做 player 都够，咁大大部機仔，唔通用離行 photoshop 咩。

paulkwan

hksarac 發表於 2015-6-24 17:05
Ram 只得4G, 8g 就差不多，Jplay buffer set大些都不夠。

Yes a bit weak for windows jplay single PC。
For dual PC mode this could be the audio PC。
