[線材] NORDOST電源線等級及生劏圖

[複製鏈接]
發表於 2011-3-16 21:18:54 | 顯示全部樓層 |閱讀模式

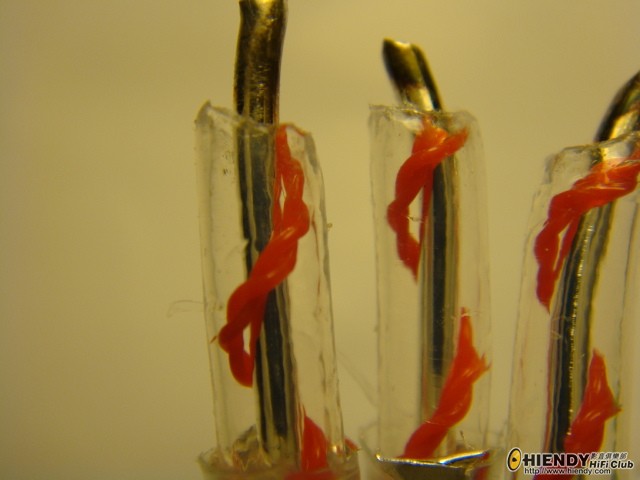

台灣DIY高手放左好多毒相.我再加返d技術資訊.大家分享下..

http://www.myav.com.tw/bbs/showt ... 06&pagenumber=1

NORDOST電源線等級:
Odin --> Valhalla --> Brahma --> Vishnu --> Shiva --> Magus

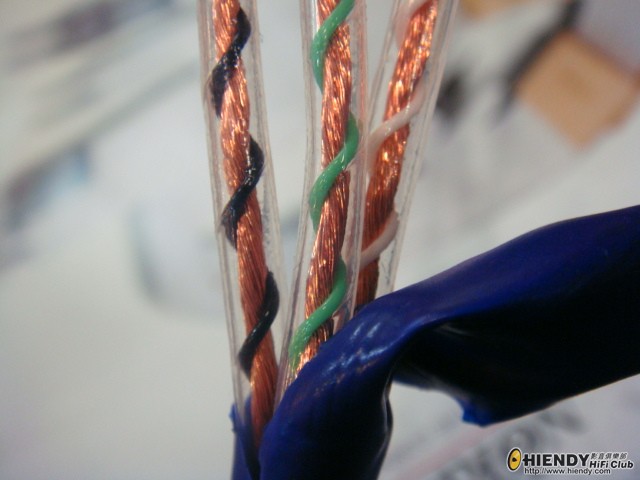

Magus
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 3x 16AWG Micro Mono-Filament
CONDUCTORS: 65 strand 99.9999 OFC solid-core
CAPACITANCE: 10.0pF/ft
INDUCTANCE: 0.155uH/ft
POWER RATING: 10 Amps








Vishnu & Shiva

Vishnu
CONSTRUCTION: Precision micro mono-filament design
INSULATION: FEP
CONDUCTORS: 3 x extruded silver over 16 AWG 99.999999% OFC solid core
CONNECTORS: IEC Wall plug US/UK/EUR
SPEED: 85% Speed of light
POWER RATING: 25 Amp
CAPACITANCE: 10pF/ft
DC RESISTANCE: 4.0 Ohms per 1000ft/304M as terminated

Vishnu 與 Shiva 基本結構相同
Vishnu 內芯是16AWG約1.29mm ,線身粗些
Shiva 內芯是18AWG約1.02mm ,線身細些

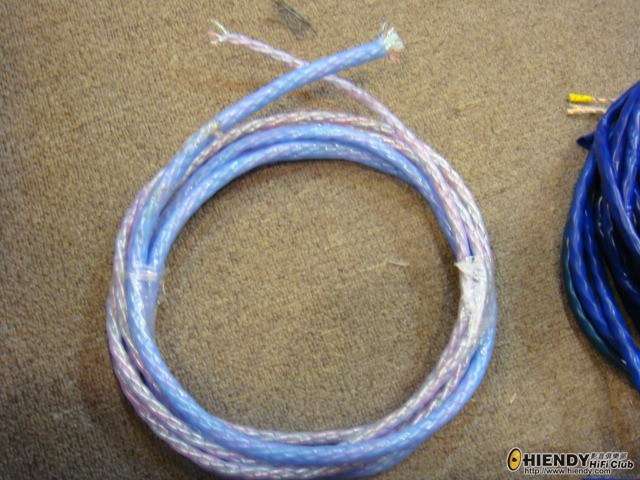

Brahma
INSULATION: FEP
CONSTRUCTION: Precision Micro Mono-Filament design
CONDUCTORS: 5 x 16 AWG Silver-Plated 99.99999 OFC
POWER RATING: 25 Amp
CAPACITANCE: 8.8pF/ft
DC RESISTANCE: 2.0 Ohms per 1000ft/304M as terminated








Valhalla
CONSTRUCTION: Precision dual micro mono-filament
INSULATION: FEP
CONDUCTORS: 7 x 16 AWG
MATERIAL: 70 microns of Silver extruded over 99.999999% OFC solid cores
CONNECTORS: Gold-plated IEC Wall plugs: US/UK/EUR
PROPAGATION DELAY: 91% Speed of light
POWER RATING: 60 Amp
CAPACITANCE: 8pF/ft
DC RESISTANCE: 1.3 Ohms per 1000ft/304M as terminated

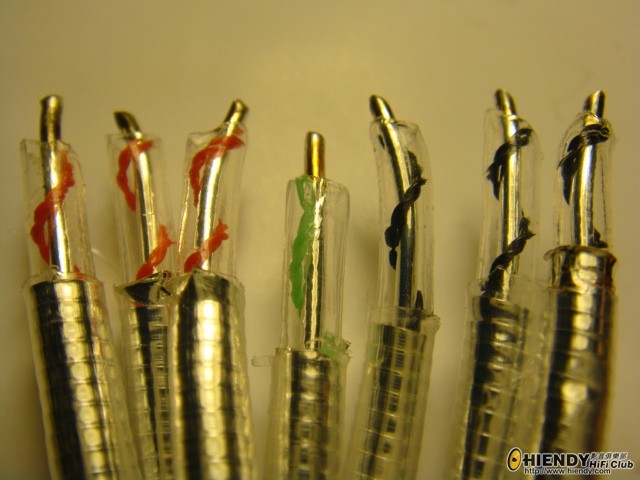

Odin
INSULATION: High purity class 1.003 Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: Total Signal Control (TSC) and Precision Dual Micro Mono-Filament design
CONDUCTORS: 7 x 15 AWG solid core conductors
MATERIAL: 80 microns of silver over 99.999999 OFC
CAPACITANCE: 19.0pF/ft
CONNECTORS: IEC/Wall plug US/UK/EUR
POWER RATING: 60 Amp
PROPAGATION: 86% the speed of light
OVERALL SHIELD COVERAGE: 100% Total Coverage










發表於 2011-3-16 21:22:37 | 顯示全部樓層
發表於 2011-3-16 22:58:46 | 顯示全部樓層
啲台灣友真有米
發表於 2011-3-16 23:03:16 | 顯示全部樓層
台灣DIY高手放左好多毒相.我再加返d技術資訊.大家分享下..



NORDOST電源線等級:
Odin --> Val ...
kachow 發表於 2011-3-16 21:18




發表於 2011-3-17 10:45:38 | 顯示全部樓層
如果这些线基便宜一些就抵买了,现在这个价格
發表於 2011-3-19 09:35:13 | 顯示全部樓層
哈哈~~~~勁!!!

Odin~~大家可以照diy
發表於 2011-3-19 14:30:00 | 顯示全部樓層
詳盡
發表於 2011-3-19 18:23:52 | 顯示全部樓層
太厲害了
