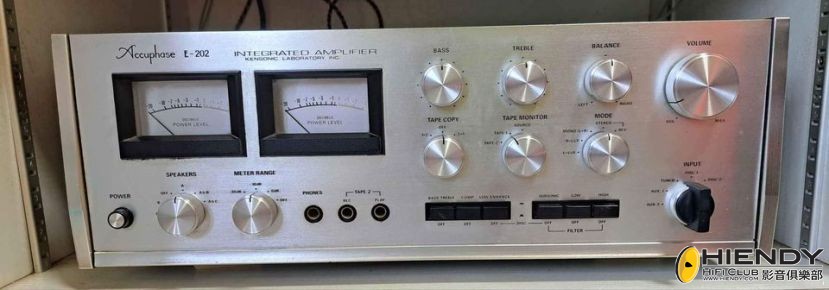

The Accuphase E-202 is a Integrated Stereo Amplifier which possesses a great many separate component class features and characteristics.
Full play has been given in its design to the advanced engineering techniques that were developed far the P-300 Power Amplifier and the C-200 Control Center which spearheaded the Accuphase line of highest quality audio equipment.
Among the many special features of the E-202 is the high power output of 100 watts per channel into 8 ohms assuring excellent sound quality at ALL listening levels.
This high power capability, with distortion at less than 0.1% over the entire audio range of 20 to 20000 Hz is fully guaranteed.
Heavy duty power transistors in a parallel push-pull drive output stage and large heat sinks back up this Accuphase Warranty.
Design emphasis was placed on maintaining excellent sound quality also at the low listening levels.
Specifications
Power output: 100 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.15%
Damping factor: 50
Input sensitivity: 2.5mV (MM), 160mV (line)
Signal to noise ratio: 74dB (MM), 80dB (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 53 x transistors, 4 x FET, 44 x diodes, 2 x thermistors
Dimensions: 455 x 152 x 355mm
Weight: 19.5kg |
|
