發表於 2018-9-12 01:13:15
|
顯示全部樓層
本帖最後由 wachilee 於 2018-9-12 01:24 編輯

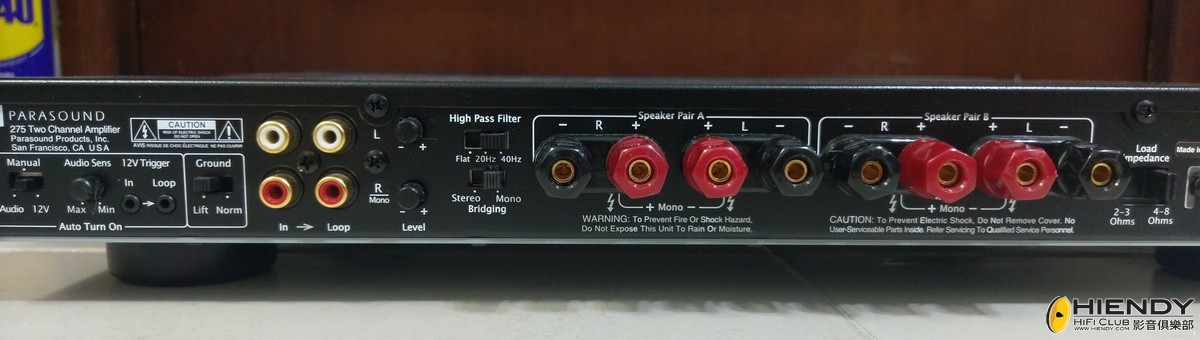

Please noted that you are setting your amp as bridging mode which means that it can only accept one single channel input (left or right) and connect one single speaker (left or right)ONLY. That connection can use if you have two identical amp and both switch to bridging mode. They are acting like a mono block. Use the two binding post in RED to connect to speaker. look at the MONO indicator under the red binding post and check the polar.
If you only have one amp then you should switch it back to stereo, speak A & speak B are allow you to connect to 2 set of speakers but only one set can use play music one at a time. From front panel you can select either A or B for selected output.
When in stereo mode, follow the normal polar indicated at top, one black and one red for left and right channel.
Ching better check your amp manual to fully understand how you can do the connection to prevent damage to your power amp. |
|
