有冇人試過呀
SPECIFICATIONS

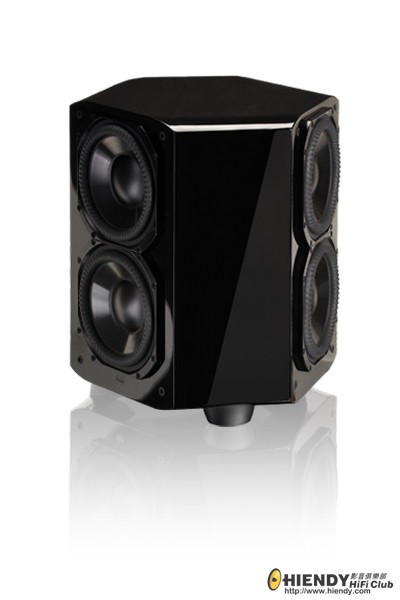

Design Hexagonal cabinet with multiple high-excursion
drivers radially aligned in a Vibration-Canceling
Design Architecture, patented built-in
Ultra-Class-D™ power amplifier, sealed
enclosure, PBK interface, removable grille
Amplifier: High-Current,
Discrete Output 3,400 watts Dynamic Peak /
1,700 watts RMS
Amplifier Features Auto-On / Off, Trigger On / Off, soft clipping,
electrical shorting protection, thermal protection
Bass Driver Six 203-mm (8 in) mineral-filled co-polymer
polypropylene cones, overmolded
FEA-optimized NLC™ surrounds, 38-mm
(1-1/2 in) four-layer long-excursion voice
coils, high-temperature composite Nomex®
formers, advanced spiders, 9.2-lb (4.16 kg)
hard ferrite magnet / motor structure,
AVS™ die-cast heatsink chassis
Low-Frequency Extension* 12 Hz (DIN)
Subwoofer Cut-Off Frequency Variable 35 Hz - 150 Hz; Bypass Option
Sub / Sat Phase Alignment Variable 0° - 180°
Line-Level Input RCA (S/E) Left and Right or Sub-Out / LFE or
Balanced XLR. From Sub-Out / LFE-Out of
preamp, processor or other line-level source
Line-Level Input Sensitivity 100 mV mono
Line-Level Input Impedance RCA: 10k ohms; XLR: 20k ohms
Accessory Included Paradigm Perfect Bass Kit
Height, Width, Depth††
51.6 cm x 50.5 cm x 45.5 cm
20-1/4 in x 19-14/16 in x 17-14/16 in
Diameter of Hexagonal Cabinet 50.5 cm
19-14/16 in
Weight (unpacked) 49.4 kg / 109 lb each
Finishes Cherry, Piano Black, Black Ash |
|
