Onkyo TX-NR809 , TX-NR1009 is coming soon

bigpun1975

http://www.intl.onkyo.com/produc ... tx-nr809/index.html












http://www.intl.onkyo.com/produc ... x-nr1009/index.html

bigpun1975

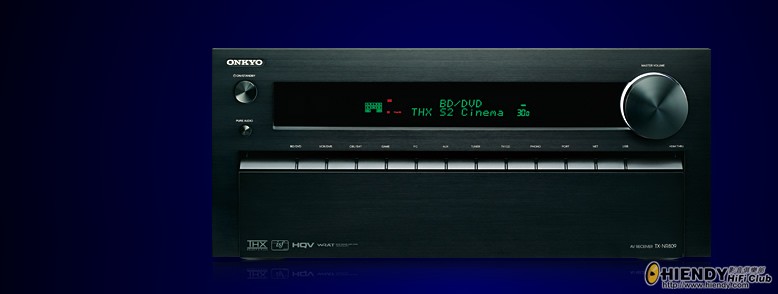

TX-NR 809

ADVANCED FEATURES

THX® Select2 Plus™ Certified

HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

High-Quality HQV® Vida™ VHD1900 Video Processor

ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance

HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Supports Onkyo Remote App for Control of A/V Receiver via iPod/iPhone*

Audyssey MultEQ® XT for Room Acoustic Correction

Audyssey DSX™ and Dolby® Pro Logic® IIz for Expanded Surround Channels

Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)

Internet Radio Connectivity Through vTuner

Powered Zone 2 and Zone 2/3 Pre-Out for Distributed Audio Playback in Multiple Room

*Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.)



OTHER FEATURES

Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI

Audyssey Dynamic EQ® for Loudness Correction

Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range

Dolby® Volume for Reference-Quality Listening Experience at Any Volume

Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)

A/V Sync Control (Up to 800 ms in 5 ms Steps)

Tone Control (Bass/Treble) for Front and Zone 2 L/R Channels

Illuminated Volume Knob (White)

Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*

40 FM/AM Random Presets

Firmware Updates via Ethernet and USB

Certified with Windows® 7 and DLNA Version 1.5

RIHD (Remote Interactive over HDMI) for System Control

Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen Setup, Mode-Key LEDs, and Macro Presets for Four Activities

*Note: Volume knob LED is always off when display is dimmed.



AMPLIFIER FEATURES

WRAT (Wide Range Amplifier Technology)

Three-Stage Inverted Darlington Circuitry

H.C.P.S. (High Current Power Supply) Massive High-Power Transformer

Linear Optimum Gain Volume Circuitry

PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for All Audio Signals
GENERAL SPECIFICATIONS

230 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, JEITA;
180 W/Ch at 6 Ohms, 1 kHz, 1%, 1 channel driven, IEC;
160 W/Ch at 6 Ohms, 1 kHz, 0.1%, 2 channels driven, FTC

Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (DSP bypass)

WHD: 435 x 198.5 x 435.5 mm

Weight: 18.3 kg



PROCESSING FEATURES

Dolby® TrueHD and DTS-HD Master Audio™ Decoding

TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for All Channels

Advanced 32-Bit Processing DSP Chip

4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

Advanced Music Optimizer for Compressed Digital Music Files

Handles Playback of Mass Storage Class USB Memory

Theater-Dimensional Virtual Surround Function

Direct Mode and Pure Audio Mode

Double Bass Function

Non-Scaling Configuration

A-Form Listening Mode Memory

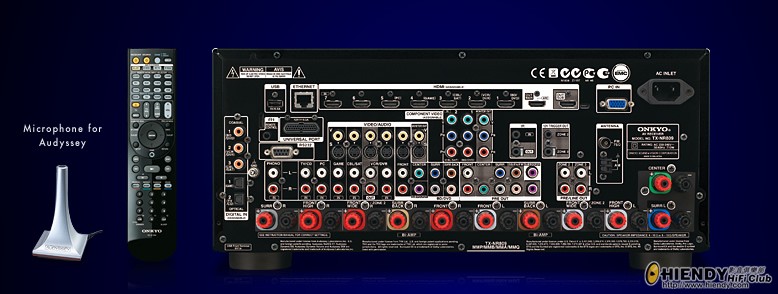

CONNECTION FEATURES

8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs

Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone

2 USB Ports (Front/Rear)

Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)

2 Component Video Inputs and 1 Output

5 Composite Video Inputs and 2 Outputs

4 S-Video Inputs and 2 Outputs

Analog RGB Video Input (D-sub, 15 pin) for PC

6 Digital Audio Inputs (3 Optical and 3 Coaxial)

6 Analog Audio Inputs and 1 Output

Phono Input

Color-Coded, 7.1 Multichannel Inputs

Color-Coded, 7.2 Multichannel Pre Outs

Color-Coded, Banana Plug-Compatible Speaker Posts

Bi-Amping Capability

RS232 Port, IR Input/Output, and 12 V Trigger Out (Zone 2/3)

bigpun1975

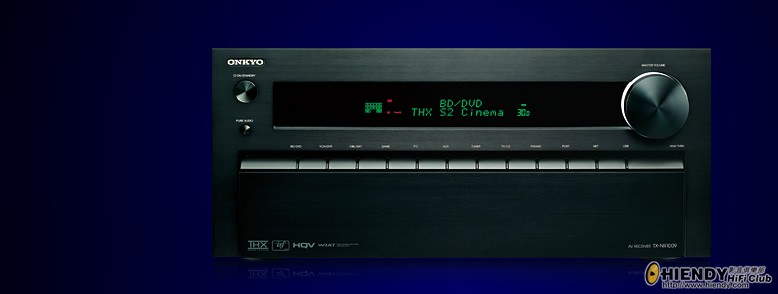

TX NR-1009


ADVANCED FEATURES

THX® Select2 Plus™ Certified

HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

High-Quality HQV® Vida™ VHD1900 Video Processor

ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance

HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Supports Onkyo Remote App for Control of A/V Receiver via iPod/iPhone*

DTS Neo:X™, Audyssey DSX™, and Dolby® Pro Logic® IIz for Expanded Surround Channels

Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)

Internet Radio Connectivity Through vTuner

Powered Zone 2/3 and Zone 2/3 Pre-Outs for Distributed Audio Playback in Multiple Rooms



OTHER FEATURES

Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI

Audyssey MultEQ® XT to Correct for Room Acoustics

Audyssey Dynamic EQ® for Loudness Correction

Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range

Dolby® Volume for Reference-Quality Listening at Any Volume

Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)

A/V Sync Control (Up to 800 ms in 5 ms Steps)

Tone Control (Bass/Treble) for Front and Zone 2 L/R Channels

Illuminated Volume Knob (White)

Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*

40 FM/AM Random Presets

Firmware Updates via Ethernet and USB

Certified with Windows® 7 and DLNA Version 1.5

RIHD (Remote Interactive over HDMI) for System Control

Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen Setup, Mode-Key LEDs, and Macro Presets for Four Activities

*Note: Volume knob LED is always off when display is dimmed.



AMPLIFIER FEATURES

WRAT (Wide Range Amplifier Technology)

Three-Stage Inverted Darlington Circuitry

H.C.P.S. (High Current Power Supply) Massive High-Power Transformer

Linear Optimum Gain Volume Circuitry

PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
GENERAL SPECIFICATIONS

230 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, JEITA;
180 W/Ch at 6 Ohms, 1 kHz, 1%, 1 channel driven, IEC;
160 W/Ch at 6 Ohms, 1 kHz, 0.1%, 2 channels driven, FTC

Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)

WHD: 435 x 198.5 x 435.5 mm

Weight: 18.5 kg




PROCESSING FEATURES

Dolby® TrueHD and DTS-HD Master Audio™ Decoding

TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690 and PCM1798) for All Channels

Advanced 32-Bit Processing DSP Chip

4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

Advanced Music Optimizer for Compressed Digital Music Files

Handles Playback of Mass Storage Class USB Memory

Theater-Dimensional Virtual Surround Function

Direct Mode and Pure Audio Mode

Double Bass Function

Non-Scaling Configuration

A-Form Listening Mode Memory

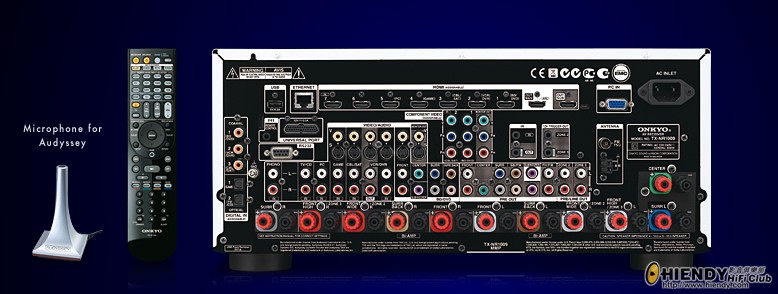

CONNECTION FEATURES

8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs

Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone

2 USB Ports (1 Front/1 Rear)

Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)

2 Component Video Inputs and 1 Output

5 Composite Video Inputs and 2 Outputs

4 S-Video Inputs and 2 Outputs

Analog RGB Input (D-sub, 15 pin) for PC Video

6 Digital Audio Inputs (3 Optical and 3 Coaxial)

6 Analog Audio Inputs and 1 Output

Phono Input

Color-Coded, 7.1 Multichannel Inputs

Color-Coded, 9.2 Multichannel Pre Outs

Bi-Amping Capability

RS232 Port, IR Input/Output, and 12 V Trigger Out (Zone 2/3)
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice.

10bucks360

換款快過iPhone

ming1212

無得追款差不多一年多就換款

bigpun1975

TX-NR 809

ADVANCED FEATURES

THX® Select2 Plus™ Certified

HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

High-Quality HQV® Vida™ VHD1900 Video Processor

ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance

HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell

agnes_b

痴根，洗唔洗出得咁密呀！

a974005

大家唔追款,唔買佢

benbenben

雖然出得咁密,不過今次外殼內膽都唔同o左

tontontony

我自己就唔係太LIKE佢個新設計..

MAEDA

無得追款差不多一年多就換款x2

gary0827

追セQ呀!攞部787出嚟咪一X樣

bigpun1975

轉載自21hifi.com

Onkyo安橋AV中級強機TX-NR809

Onkyo安橋宣佈推出全新AV功放TX-NR809，它是去年21hifi測試過的TX-NR808後續升級型號，海外定價折合約6000多元人民幣，安橋將眾多高級音訊/視頻技術，下放到這台中價位的新機中，讓更多用家享受到高級影音的表現。
安橋TX-NR809裝載了強大的視頻處理元件，除了支援1080P倍線輸出外，更4K(3840 x 2160)的視頻輸出能力，裝載包括了Mavell Qdeo和最新的IDT HQV Vida VHD1900技術，並獲得了ISF(Imaging Science Foundation Research Labs，影像科學基礎研究實驗室 )認證。符合ISF實驗室對高品質影像、電影以及娛樂視頻製作重播的要求。ISF作為測試和認證高端視頻消費產品的權威實驗室，一般只有在同類產品中最頂級的設備才能獲得ISF認證，在中價位AV功放上，安橋TX-NR809是中級機中首次獲得ISF認證，充分顯示TX-NR809擁有強勁的視頻處理能力。


Qdeo晶片組利用先進的 Marvell QuietVideo處理技術套件提供豐富的高畫質影像，從而創造安靜、自然、無雜訊與假影的影像品質。個別圖元雜訊和壓縮假影降低技術能消除數位影像與生俱有的雜訊；個別圖元動態偵測3D非交錯掃描技術能消除鋸齒和羽化現象。適應性對比增強 (ACE)和智慧色彩補救 (ICR)則創造豐富逼真的影像品質。
TX-NR809裝載的最新IDT HQV Vida VHD1900處理器，該強大的處理器除了能將標清影像升頻到1080P輸出外，更支援將1080p影像升頻到4K(3840 x 2160)超高解析度輸出，對應未來的4K超高解析度螢幕的使用。
DT HQV Vida VHD1900採用四場運動自我調整去隔行、多場頻跟蹤、12位色彩處理和解析度增強加強了圖像細節和品質。將標清源轉換為高清品質，使高清看起來更加細緻。此外，該器件還提供了對高壓縮視頻的即時清理，可減少來自低品質源壓縮失真的馬賽克和蚊式雜訊。Auto HQV和HQV StreamClean更可以自動增強傳入的圖像，並實現強大的源視頻清理，讓TX-NR809處理標清畫面倍線的時候盡可能清晰和乾淨。


安橋TX-NR809是一台獲得THX Select2 Plus認證的7.2 AV功放，定額功率輸出135Wx7。解碼/前級及功率放大後級是分別獨立的，聲道對稱分配電路的設計走線方式，電源部分採用了HCPS大電流電源,不僅效率高,而且對周圍電路的噪音輻射小,同時所有接外掛程式都為高品質的純銅合金配件，讓電流傳輸更保障。配置優質電容器,為高清音訊的功率放大提供源源不絕的能量儲備，加上密封式防磁屏閉，音效更加清晰乾淨。採用分立式獨立供電設計，操作電路採用各自獨立的供電和整流電路，使互相的干涉減到最少，而且特別在類比音訊電路上採用了大型的高品質電源模組，以達到最佳的工作狀態。


安橋TX-NR809放大器部分採用低負回輸後級設計，可擴闊擴音機的高低音延伸，同時亦可將誤差減至最低，配備HICC（High Instantaneous Current Capability）技術，則可使擴音機的瞬間電流供應與控制能力大大提高，對於突然變化的聲音信號，亦可作出靈敏的反應，以確保供給驅動揚聲器的電流信號有良好的控制，而對於高低突發變化的聲音，亦可減少電平過高或不足的誤差。
TX-NR809採用Onkyo獨家的WRAT（WideRangeAmplifierTechnology）擴大線路，此優異放大線路能徹底根絕對於接地回路的雜訊干擾，瞬態電流容量也比一般額定的功率大2～3倍，因此能產生極大的動態範圍及有效延伸頻寬與降低雜訊，更足以對應DVD Audio及SACD這些最新的超越100kHz高音質音碼格式。同時搭配獨家的VLSC技術，出來的聲音更加靚。21hifi.com之前也曾經給大家介紹過，VLSC技術是為高級AV放大器開發VLC技術的進化改良電路。VLSC技術能夠使產生鋸齒、不平滑的音樂信號有明顯的平滑改善能力，音樂本身的細緻感因此而得到良好再現。
安橋TX-NR809在音訊標準上，全面支援新世代BD藍光碟的高清環繞格式，支援最新的DTS-HD MA和Dolby TrueHD的解碼，支援DSD數碼音訊流的解碼，音訊部分所有聲道配合Burr-Brown晶片，準確還原192kHz/24bit的高清音訊信源，能徹底消除對PCM信號進行D/A轉換時所產生的量化雜訊，清晰再現低電平信號，充分展現聲音細節，提升AV音質。
除了支援HD高清環繞解碼能力外，TX-NR809同時還獲得了THX Select2 Plus認證，THX是由奧斯卡音效獎得主佐冶盧卡斯所發明的,它代表了影院標準,以及家用視聽器材(家庭劇院)提供完整品質的規格典範。 THX不像一般標準設有允差範圍, THX的嚴格程度是對於每個環節都有一定程度要求,而這種制定模式亦只會授權于完全符合此嚴格要求的影音產品製造商。
除了高清解碼外，當然也支援3D立體高清，支援最新的HDMI 1.4a標準介面，適應現在最新潮流藍光3D立體高清信號的傳輸功能，TX-NR809提供8組HDMI 1.4輸入及2組HDMI 1.4輸出，其中一組輸入在前面板，方便連接手提設備。

TX-NR809同時具備有網路介面及USB介面，方便連接電腦網路解碼播放音訊檔使用，支援MP3/WMA/WMA Lossless/WAV/AAC/FLAC/Ogg/PCM音樂檔，同時以後也可以通過固件升級獲得對更新的音樂檔的解碼支援。對應1.5版本的DLNA網路功能，獲得了 Windows 7認證，當AV擴音機連接到內部網路（有線或無線）後，同在該網路內裝了Windows 7系統的電腦，會馬上自動搜索出該AV功放，在Windows 7系統的Windows Media Player上有一個新的「Play To」功能，能直接通過電腦控制AV功放的功能，也能通過指定的某台AV功放播放電腦內的音樂，真正讓整個家居內的AV器材都能通過個人電腦有線或無線控制其操作。
裝載MultEQ XT自動揚聲器系統設定功能，它可以根據房間的特性調校出不再單一的皇帝位，擴闊視聽空間，帶來更大更寬廣的音效層次，靚位不再局限于一點之上，而音色亦更見清晰自然，從此可與家人共坐「沙發」和諧分享完美的影院音效。

pepsiman

相信安橋銷售策略係希望能夠吸納更多新用家,而唔係要舊客戶追款...
