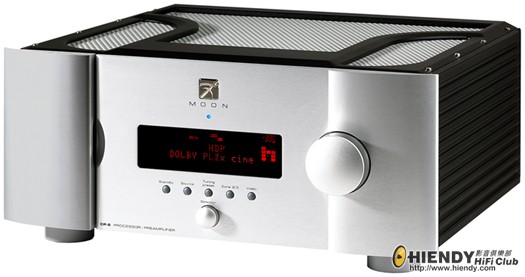

CP-8
Raising the bar for the ultimate in A/V Controllers !
The MOON CP-8 is a genuine flagship Surround Preamplifier/Processor, aimed at the uncompromising enthusiast without price constraints. Designed with sound quality first and foremost in mind, the CP-8 provides a previously unimagineable level of sonic purity and realism from an audio/video product.
A monumental obstacle that has been overcome by our dedicated engineering staff was the successful implementation of the latest advancements in HD video and HD digital audio decoding technologies. Coupled with our State-of-the-Art analog circuitry, the CP-8 is foolproof yet simple to operate.
Intended to be the flawless nerve center for the most sophisticated and high performance audio/video systems available today and tomorrow, the MOON CP-8 will always leave you breathless, yearning for the next home cinema experience.
Significant Design Features:

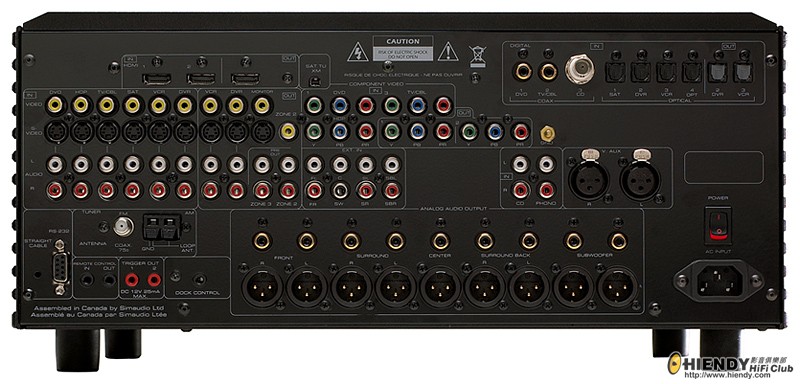

· 7.1 Channels with up-to-date HD audio and video decoding
· HDMI 1.3a inputs and output
· Three-zone multiple source capability
· RS-232C and serial IR ports for full custom external control
· Dual assignable 12 Volt trigger outputs
· HD Video Circuitry using 12-bit/216MHz encoders/decoders with NSV Precision Video
that includes Faroudja DCDi video processing, 1080p video pass-through, and up
to 1080p analog-video-to-HDMI upscaling
· Full-function programmable remote-control with touch-screen
· An over-sized power supply with 2 transformers including 1 proprietary toroidal
specifically for analog audio circuitry
· Power supply voltage regulation includes 20 stages of i2DCf (Independant Inductive
DC Filtering)
· 6 assignable digital audio inputs
· Secondary remote control for basic operation
· Hidden control panel allows for full operation and setup without a remote control
· 10 DSP simulation playback Modes
· Auto Surround Mode for Digital & Analog inputs
· 2 subwoofer outputs
· Three user-selectable muting levels
· "Auto Setup Calibration" (w/ microphone), Auto & Manual room calibration and
"Audyssey Mult EQ XT"
· Crossover points at 40, 60, 80, 100, 120, 150 & 250Hz in either 12 dB or 24dB steps
· Built-in AM/FM Tuner and RIAA Phono Section (MM)
· XM Satellite Radio ready
· Short signal paths for a faster transient response
· Designed to remain powered up at all times for optimal performance.
終極 A / V 控制器 !
CP-8 是真正旗艦環繞前置放大器/處理器,旨在無價格約束不妥協愛好者。CP-8 設計與聲音品質首先考慮,提供以前 unimagineable 級別的聲波的純度和現實主義的音訊和視頻產品。
已被解決了我們專門的工程人員的一個重大障礙是成功實施的高清視頻和 HD 數位音訊解碼技術的最新進展。加上我們先進的類比電路,CP-8 是絕對可靠又簡單操作。
擬完美的神經中心,最先進和高性能音訊/視頻系統可用的今天和明天, CP-8 將永遠令到你氣喘吁吁,渴望未來的家庭影院體驗。
設計特點:
·7.1 聲道,並與最新高清音訊和視頻解碼
·HDMI 1.3 a 輸入和輸出
·三帶多源能力
·RS-232 C 和完全自訂的外部控制的串列紅外線連接埠
·雙轉讓 12 伏觸發器輸出
·12-位元/216 MHz 編碼器/解碼器使用 NSV 精密視頻的高清視頻電路
這包括 Faroudja DCDi 視頻處理,1080p 視頻傳遞,並最多
以 1080p 類比 HDMI 視頻改善
·全功能觸控式螢幕可程式設計遙控
·2 變壓器包括 1 專有環形臃腫的電源
專門為類比音訊電路
·電源供應電壓調節包括 i2DCf 20 階段 (獨立感應
直流篩選)
·6 轉讓數位音訊輸入
·基本操作的輔助遠端控制
·隱藏的控制台允許全面運作和無遠端控制設置
·10 DSP 類比播放模式
·數位和類比輸入自動環繞模式
·2 超低音音箱輸出
·三個使用者可選靜音級別
·"自動安裝校準"(帶麥克風)、 自動和手動室校準和
「 Audyssey 多情商 XT"
·交叉點 40、 60、 80、 100、 120、 150、 250 Hz 12 dB 或 24dB 步驟中
·內置的 AM / FM 調諧器和美國唱片業協會電話科 (毫米)
·XM 衛星廣播準備
·更快的瞬態回應的短信號路徑
·設計在所有保持通電時間獲得最佳性能。

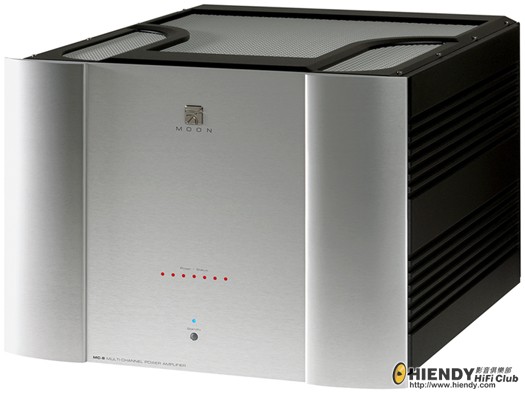

MC-8
An Amplifier to end all Multi-Channel Amplifiers
The State-of-the-art ... Redefined !
Available in configurations from 2 to 7 channels, the MOON MC-8 was designed with one overwhelming goal in mind: uncompromising reproduction of both the massive dynamics and awe inspiring sonics that accompany today's uncompressed multi-channel audio recordings (Blu-Ray). To accomplish this feat and the numerous engineering challenges that go with it, a whole new approach to the design of multi-channel amplification was required.
Relying on many technologies found in our highly-acclaimed Evolution Series power amplifiers, numerous physical and electrical constraints had to be overcome to create a multi-channel amplifier where all 7 channels would be capable of identically staggering performance. The result is the MC-8 which can produce a maximum continuous power output of 250 watts per channel into 8 ohms, 500 watts per channel into 4 ohms and 1000 watts per channel into 2 ohms, generating a mind-numbing ultra-high-current output signal of 280 amperes spread across 7 channels.
The MC-8 is leaps beyond anything else available, even our own MOON Titan. A quick listen will reveal a level of sound purity, sheer power and limitless dynamics that no other multi-channel power amplifier has ever been able to attain, let alone hint at. The MOON MC-8 is a genuine masterpiece, a technological tour-de-force, and a colossal achievement that has no equal.
Significant Design Features:

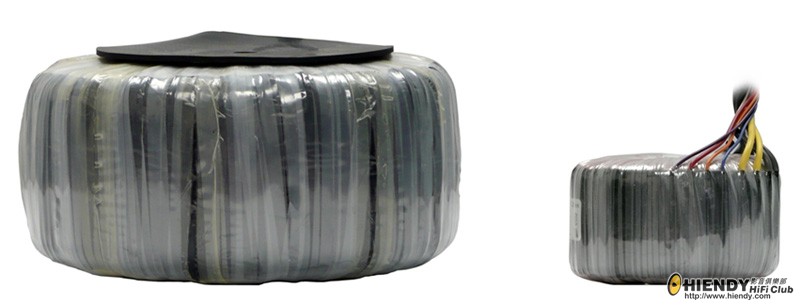

· An enormous power supply featuring a proprietary toroidal transformer design that
allows for astonishing dynamics from Blu-Ray soundtracks
· The world’s first and only multi-channel amplifier capable of simultaneously handling
7 channels of uncompressed audio without any dynamic compression
· Class “A” output to 5 watts for greater efficiency and refined sonics at typical
listening levels
· Balanced differential circuitry
· Extremely fast circuitry for real-time amplification

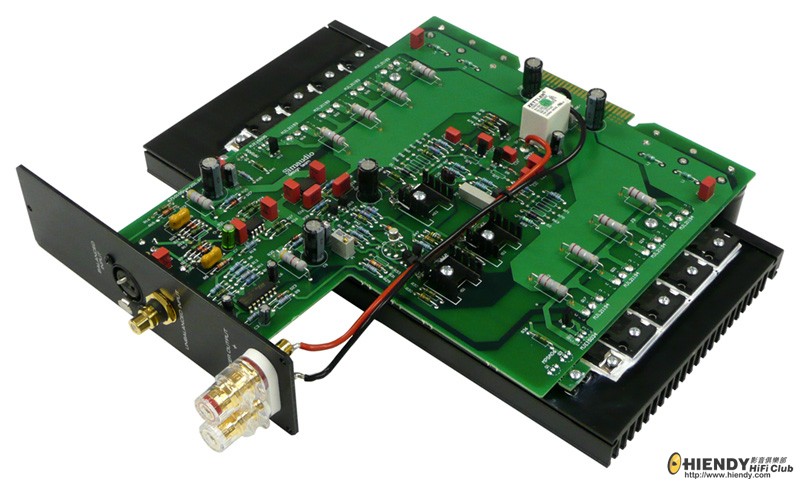

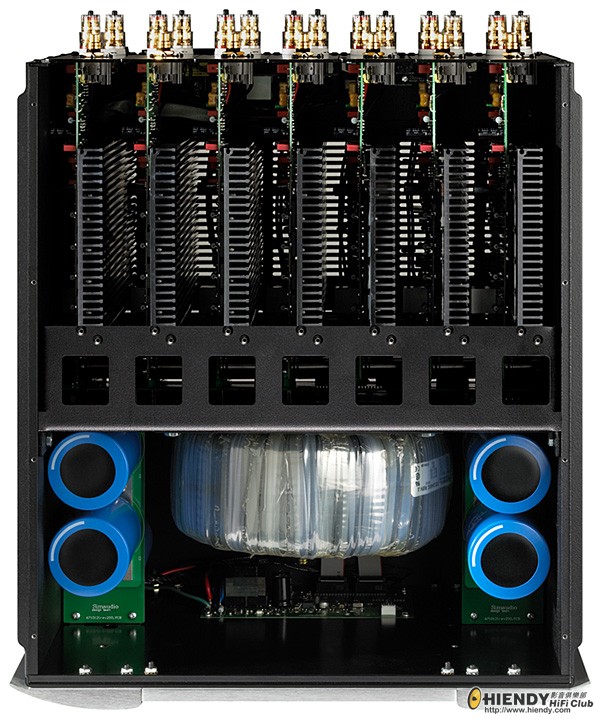

· Modular circuit design using plug-in cards for the addition/removal of channels
“in the field”
· Virtually non-existent intermodulation distortion
· Proprietary MOON Bipolar output transistors with unprecedented gain linearity
resulting in improved bass response and even more accurate sonic reproduction
· A very high damping factor yielding extremely tight, accurate and fast reproduction
of bass notes
· Ultra rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of the highest quality electronic components
· RS-232 port for full custom external control
· 12 Volt trigger for remote operation
· Very short signal path for a faster transient response
· Requires a 220-240V AC power outlet
· Pure copper circuit board tracings with extremely low impedance characteristics
· Designed to remain powered up at all times for optimal performance
· Low operating temperature for an exceptionally long life.
結束所有的多通道放大器的放大器
--先進的...重新定義 !
2 到 7 通道配置中可用,銘記一個壓倒性目標而設計月球 MC 8: 永不妥協繁殖的大規模動態和鼓舞人心的敬畏聲伴隨今天的未壓縮多通道音訊錄製 (藍光)。要完成此壯舉和與其相配的眾多工程挑戰,需要設計的多通道放大整個新方法。
無數的物理和電氣約束髮現我們高度稱讚的演化系列功率放大器中的很多技術為依託,創建一種多通道放大器克服了所有 7 頻道將能夠以相同的方式驚人的性能。其結果是 MC 8 可以產生最大連續功率輸出每個通道 8 歐姆,每個通道 4 歐姆和每個通道 2 歐姆 1000 瓦 500 瓦 250 瓦的生成虛構超-高電流輸出 280 安培跨 7 頻道信號。
MC-8 是超越任何其他可用,即使我們自己月亮土衛六的飛躍。快速聽會揭示的聲音純度、 絕對的權力和無限的動力,沒有其他多聲道功率放大器曾經能夠實現,更遑論暗示的水準。月亮 MC 8 是一個真正的傑作,技術--仙逝和沒有對手的巨大成就。
設計特點:
·一種巨大的電源,具有專有的環型變壓器設計,
允許從藍光背景音樂的驚人動力學
·世界上第一隻多通道放大器能夠同時處理
7 管道的未壓縮音訊無任何動態壓縮
·"A"級輸出到更高的效率和精的聲在典型 5 瓦
英語聽力水準
·平衡的微分電路
·極快的即時放大電路
·使用外掛程式卡的管道的添加/刪除的模組化電路設計
"在現場"
·幾乎不存在互調失真
·具有前所未有的專有月亮雙極性輸出電晶體增益線性
從而改善低音回應和更精確的聲波再現
·極高的阻尼係數,產生極緊、 準確、 快速繁殖
低音筆記
·超剛性底盤施工儘量減少外部振動的影響
·電子元器件的最高品質的精確匹配
·完全自訂的外部控制的 rs-232 埠
·遠端操作的 12 伏觸發器
·更快的瞬態回應很短信號路徑
·要求 220-240V 交流電源插座
·純銅電路板脈象與極低阻抗特性
·設計在所有保持通電時間最優性能
·低操作溫度為使用壽命特別長。 |
|
