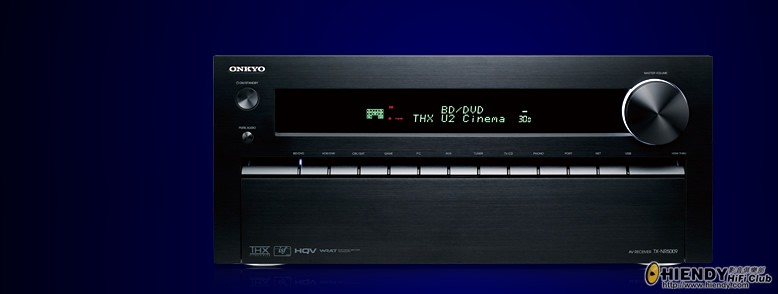

As Onkyo’s new flagship home network receiver, the TX-NR5009 packs the ultimate in clean power,
precise processing, and abundant connectivity. Power is delivered through a massive toroidal transformer
and multiple transformers for A/V processing, with the chassis encased in separate panels to reduce vibrations.
Gold-plated HDMI® terminals, speaker posts, and A/V inputs speak to build quality of the highest order.
Video output from the TX-NR5009 benefits from advanced HQV® Vida™ processing, ISF video calibration,
and 4K upscaling via Qdeo™ technology. Audio, meanwhile, is processed via high-end 192 kHz/32-bit TI Burr-Brown DACs,
with support for DSD Direct from SACD and DTS Neo:X™ surround-sound processing.
Audyssey MultEQ® XT32 gets the most out of movie and game soundtracks and fills your music with energy and pure musicality.
As your all-purpose switching center, the TX-NR5009 includes eight 3D-ready HDMI inputs, 9.2-multichannel pre-outs, and an Ethernet port for internet radio and PC audio. Stringent THX® Ultra2 Plus™ quality assurance guarantees stellar performance in even the largest home theater spaces.
ADVANCED FEATURES
THX® Ultra2 Plus™ Certified
HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync,
Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Massive Toroidal Transformer and Two Separate Transformers for Audio and Video Processing
Two Customized 22,000 μF Capacitors for Effective Power Supply
Separate Anti-Vibration Panels
VLSC™ (Vector Linear Shaping Circuitry) for All Channels
High-Quality HQV® Vida™ VHD1900 Video Processor
ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell
DTS Neo:X™, Audyssey DSX™, and Dolby® Pro Logic® IIz for Expanded Surround Channels
Audyssey MultEQ® XT32 to Correct for Room Acoustics
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Supports Onkyo Remote Apps for Control of A/V Receiver via iPod touch/iPhone*1 and Android Phone*2
Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)
Internet Radio and Music Streaming Connectivity (vTuner, Spotify, AUPEO!)*3
Bi-Amping Capability
DSD Direct for Super Audio CD
Powered Zone 2/3 and Zone 2/3 Pre-Outs, and Zone 2 Video Out for Distributed A/V Playback in Multiple Rooms
Gold-Plated HDMI Terminals (2 Inputs and 1 Output Only)
Gold-Plated, Machined Solid Brass A/V Terminals (19 mm-Pitch Inputs for TV/CD and Phono)
Customized, Gold-Plated, Color-Coded, Banana Plug-Compatible Speaker Posts
*1 Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.)
*2 Requires Android OS 2.1 or later.
*3 Availability of services depends on region.
OTHER FEATURES
Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI
Audyssey Dynamic EQ® for Loudness Correction
Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range
Dolby® Volume for Reference-Quality Listening at Any Volume
Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 800 ms in 5 ms Steps)
Tone Control (Bass/Treble) for All Channels
Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*
40 FM/AM Random Presets
Certified with Windows® 7 and DLNA Version 1.5
RIHD (Remote Interactive over HDMI) for System Control
Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen Setup,
Mode-Key LEDs, and Macro Presets for Four Activities
*Note: Volume knob LED is always off when display is dimmed.
AMPLIFIER FEATURES
WRAT (Wide Range Amplifier Technology)
Three-Stage Inverted Darlington Circuitry
H.C.P.S. (High Current Power Supply) Massive High-Power Transformer
Linear Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
GENERAL SPECIFICATIONS
280 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, JEITA;
220 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, IEC;
185 W/Ch at 6 Ohms, 1 kHz, 0.1%, 2 Channels Driven, FTC
Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
WHD: 435 x 198.5 x 463.5 mm
Weight: 25.0 kg
PROCESSING FEATURES
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
TI Burr-Brown 192 kHz/32-Bit DACs (PCM1795 x 6) for All Channels
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Advanced Music Optimizer for Compressed Digital Music Files
Handles Playback of Mass Storage Class USB Memory
Theater-Dimensional Virtual Surround Function
Direct Mode and Pure Audio Mode

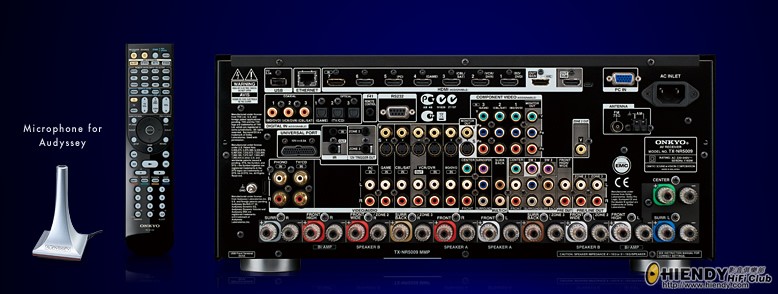

CONNECTION FEATURES
8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs
Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone
2 USB Ports (1 Front/1 Rear)
Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)
3 Component Video Inputs and 1 Output
5 Composite Video Inputs and 2 Outputs
4 S-Video Inputs and 2 Outputs
Analog RGB Input (D-sub, 15 pin) for PC Video
7 Digital Audio Inputs (4 Optical and 3 Coaxial)
8 Analog Audio Inputs and 1 Output
Phono Input
Color-Coded, 7.1 Multichannel Inputs
Color-Coded, 9.2 Multichannel Pre-Outs (Including 2 Independent Subwoofer Pre-Outs)
RS232 Port, IR Input/Output, and 12 V Trigger Out (Zone 2/3) |
|
