Velodyne EQ-MAX Series Subwoofer

bigpun1975

      Velodyne（威力登）所推出的超低音喇叭常以迅雷不及掩耳的超快速度展現出相當具有震撼力的低頻響應，因此許多家庭劇院用家皆對Velodyne所推出的主動式超低音系統有相當正面的評價。

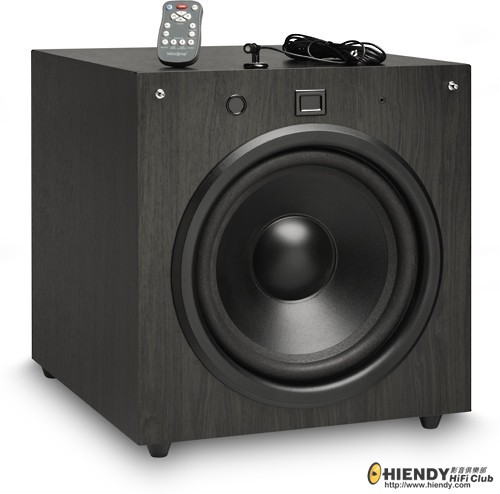

    Velodyne在2011年推出EQ-MAX超低音系列，新系列包括8寸、10寸、12寸和15寸的型號，新系列是為用家提供設置簡單、效果好而價格相宜的入門級超低音，用家只需要將麥克風放在實際聆聽區域，然後按下遙控器一個鍵，通過新開發的EQ-MAX技術，內置DSP數字信號處理均衡器，超低音系統能自動對低音系統校準，能讓超低音實現最優化效果。而且為了滿足不同音量環境下使用，還具有夜間模式，用家可以使用遙控切換，具有更高的可用性。

低音單元經過全新設計，配備超大型的強力磁路（磁鐵重量從4.66磅-10.14磅），加強型的雙音圈設計，提供較深的低音延伸的同時，能有效避免低頻的失真扭曲。EQ-MAX系列都採用了新的Class D功率放大技術及氣流調整技術，以獲得更紮實的低頻效果。全新設計的箱體和大型低音倒相孔，讓低音輸出產生的氣體在流動時與倒相管壁的摩擦湍流減少，起到減少噪聲、降低失真的使用。






EQ-MAX 8    8" Subwoofer
Accessories: Mic, mic stand, remote control
Amplifier: 360 watts Dynamic/180 watts RMS Power
Auto On/Off: No
Cabinet Design: Extended Excursion Down-firing port
Color: Black Vinyl
Dimensions: (H/W/D) 14.5" x 13.25" x 14.875" (36.8 x 33.7 x 37.8 cm)
HiPass Crossover: 80 Hz, 6 dB/octave
LoPass Crossover: 40-120 Hz adjustable (12 dB octave, 24 dB ultimate)
Phase Control :No
Removable Grille Yes
Shipping Weight: 44 lbs. (20 Kg)
Voice Coil :2-Layer copper
Warranty (N. Am.) :Three years (electronics), Five years (drivers)



EQ-MAX 10 10" Subwoofer
Accessories Mic, mic stand, remote control
Amplifier 390 watts Dynamic/195 watts RMS Power
Auto On/Off Yes
Cabinet Design Extended Excursion Down-firing por
Color Black
Dimensions: (H/W/D) 16.75” x 15.25” x 17” (includes feet and grille) (42.5 x 38.7 x 43.1 cm)
HiPass Crossover 80 Hz, 6 dB/octave
LoPass Crossover 40 - 120 Hz adjustable (12 dB octave, 24 dB ultimate)
Phase Control 0, 90, 180, 270 Degrees
Removable Grille Yes
Shipping Weight 55 lbs. (25 Kg)
Voice Coil 2-Layer copper
Warranty (N. Am.) (parts/labor) Three years (electronics) (North America) Five years (drivers)






EQ-MAX 12 12" Subwoofer
Accessories Mic, mic stand, remote control
Amplifier 450 watts Dynamic/225 watts RMS Power
Auto On/Off Yes
Cabinet Design Extended Excursion Down-firing port
Color Black
Dimensions: (H/W/D) 17.875” x 16.375” x 18” (45.4 x 41.6 x 45.7 cm)
HiPass Crossover 80 Hz, 6 dB/octave
LoPass Crossover 40 - 120 Hz adjustable (12 dB octave, 24 dB ultimate)
Phase Control No
Removable Grille Yes
Shipping Weight 61 lbs. (28 Kg)
Voice Coil N/A
Warranty (N. Am.) Three years (electronics) Five years (drivers)




EQ-MAX 15 15" Subwoofer
Accessories Mic, mic stand, remote control
Amplifier 1500 watts Dynamic/750 watts RMS Power
Auto On/Off No
Cabinet Design Extended Excursion Down-firing port
Color Black Vinyl
Dimensions: (H/W/D) 21.5” x 19” x 21” (54.6 x 48.3 x 53.3 cm)
HiPass Crossover 80 Hz*, 6 dB/octave
LoPass Crossover 40 - 120 Hz adjustable (12 dB octave, 24 dB ultimate)
Phase Control 0, 90, 180, 270 Degrees
Removable Grille Yes
Shipping Weight 75 lbs. (34 Kg)
Voice Coil N/A
Warranty (N. Am.) Three years (electronics) Five years (drivers)


http://velodyne.com/shop/subwoof ... /eq-max-series.html

pinkhung

新係列又有幾大進步呢

Manson

取代CHT系？

bigpun1975

取代CHT系？
Manson 發表於 2011-10-12 01:05

    The EQ-Max series was designed and engineered to have the best subwoofers for your money. This series has -- at an affordable price point --  mid-level amplifier power reaching down to the lowest frequencies, Auto-EQ function and remote control features found in more expensive subs. The EQ-Max series serves up more power to a lower bass range than our entry-level Impact series by using downward firing ports to limit distortion. This series features modern cabinets to blend beautifully into your room, but these subwoofers can also be easily built into and concealed in your own custom cabinets.

pepsiman

唔知呢個系列同sunfire嘅SDS系列邊隻正D呢?
我諗價錢應該差唔多,如果有機會嚟個PK戰就好o勒...

bigpun1975

回復 5# pepsiman

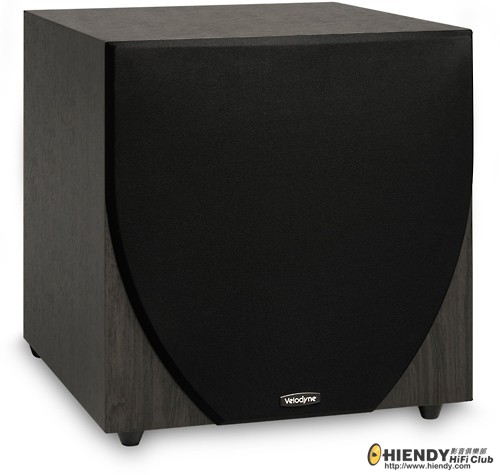

    EQ MAX 12 12" Subwoofer
Available in Black Vinyl, Remote Control, Microphone, Mic. Stand, 120V Read Full Description.
Regular Price: $799.00

Special Price: $747.00 (USD?)


http://velodyne.com/shop/subwoof ... ries/eq-max-12.html

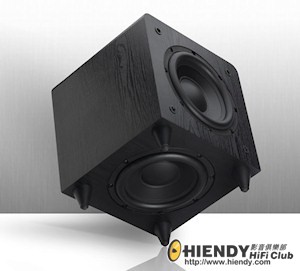

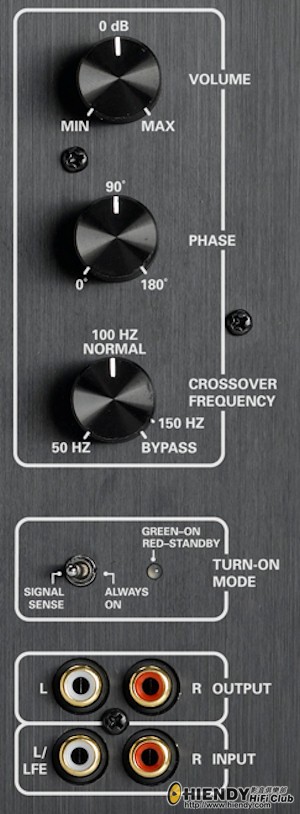

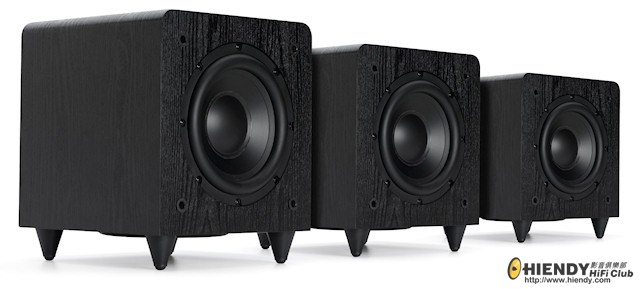

Sunfire SDS:
About 6k

Manson

The EQ-Max series was designed and engineered to have the best subwoofers for your money. Thi ...
bigpun1975 發表於 2011-10-12 11:30

    O I C
