KRELL

bigpun1975 · 發表於 2012-3-3 11:23:06

bigpun1975 · 發表於 2012-3-3 11:28:54

SIGNAL-TO-NOISE RATIO
"A" Weighted 96 dB
TOTAL HARMONIC DISTORTION (THD)
Unweighted 20 Hz-20 kHz, +0, -.5 dB

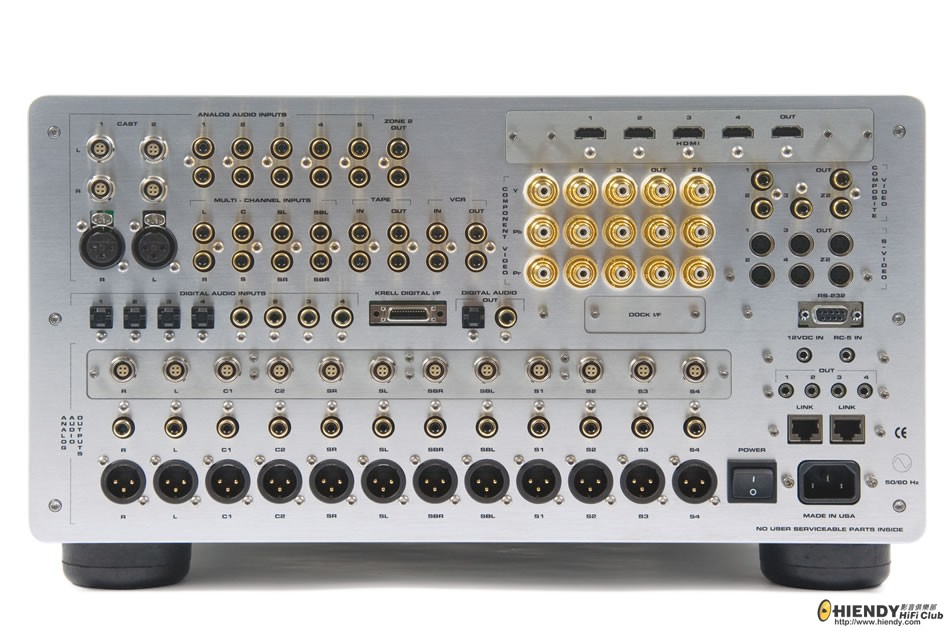

INPUTS
ANALOG AUDIO
(2) Pair CAST via CAST connectors
(1) Pair Balanced via XLR connectors
(5) Pairs Single-ended via RCA connectors
(1) Discrete 7.1 via RCA connectors
(1) Tape in via RCA connectors
(1) VCR audio in via RCA connectors
DIGITAL AUDIO
(4) HDMI via HDMI connectors
(4) EIAJ optical via Toslink connectors
(4) Coaxial via RCA connectors
DIGITAL VIDEO
(4) HDMI via HDMI connectors
ANALOG VIDEO
(3) Component Video via RCA connectors
(4) S-video via DIN connectors
(3) Composite Video via RCA connectors

OUTPUTS
ANALOG AUDIO
(12) CAST via CAST Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(12) Balanced via XLR Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(12) Single-ended via RCA Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(1) Tape out via RCA connectors
(1) VCR audio out via RCA connectors
(1) Zone 2 out via RCA connectors
DIGITAL AUDIO
(1) EIAJ optical via TosLink connector
(1) Coaxial via RCA connector
DIGITAL VIDEO
(1) HDMI via HDMI connector
ANALOG VIDEO
(1) Component Video via RCA connectors
(1) Zone 2 Component Video via RCA connectors
(1) S-video via DIN connectors
(1) Zone 2 S-video via DIN connector
(1) Composite Video via RCA connector
(1) Zone 2 Composite Video via RCA connector

CONTROL
(1) IR Receiver for Remote Control
(1) RS-232 via DB9 Female Connector Straight Wired
(1) RC-5 via 1/8" stereo "trs" Receptacle
(1) 12vdc Remote Trigger Input via 1/8" Mono receptacle
(4) 12vdc Remote Trigger Outputs via 1/8 Mono receptacles
(2) Proprietary KRELL CAN ports via RJ-45 Connectors

DIGITAL DECODING MODES
Dolby True HD
Dolby Digital Plus
Dolby Digital 5.1
Dolby Digital EX
Dolby Pro Logic IIX
DTS-HD Master Audio
DTS High Resolution Audio
DTS 5.1
DTS ES Discrete 6.1
DTS ES Matrix 6.1
DTS Neo:6
PCM 5.1
PCM 7.1
PREAMP (Direct Analog Only)
PREAMP 5.1 (Direct Analog Only)

SURROUND ENHANCEMENT MODES
General Admission
Front Row
On Stage
Enhanced Stereo
Orchestra
Mezzanine
Full Range + Sub
Monophonic
Party

RS-232 DB9 PIN OUT
1. Data Carrier Detect
2. Received Data
3. Transmitted Data
4. Data Terminal Ready
5. Signal Ground
6. Data Set Ready
7. Request To Send
8. Clear To Send
9. Ring Indicator

RC-5 pin out
Tip = RC-5 data, Ring = +5 V, Sleeve = GND

XLR Pin Out
Pin 1 (ground) Pin 2 (non-inverting "Hot") Pin 3 (Inverting)

Maximum Input
Balanced 8.2 Vrms
Single Ended 4.1 Vrms

Maximum Output
Balanced 17.8 Vrms
Single Ended 8.9 Vrms

Audio Input Impedance
Balanced 475 KΩ
Single Ended 47 KΩ

Audio Output Impedance
Balanced 150 Ω
Single Ended 150 Ω
Power Consumption Stand-by 178W
Operation 196W

DIMENSIONS
Inches (L) 21.22 x (W) 17.25 x (H) 8.75
Centimeters (L) 53.90 x (W) 43.82 x (H) 22.23

WEIGHT
52lbs Unit only
23.59kg Unit only
64lbs Shipping Weight
29.03kg Shipping weight

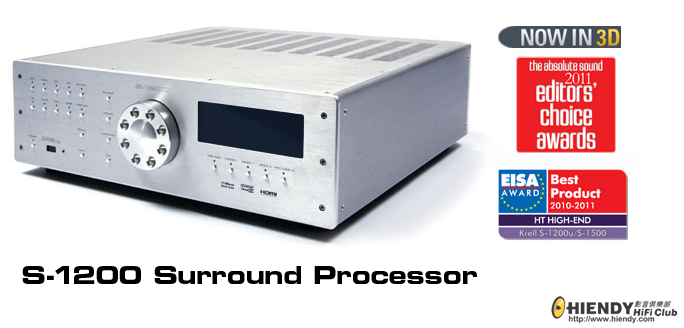

SIGNAL-TO-NOISE RATIO
"A" Weighted 96 dB

TOTAL HARMONIC DISTORTION (THD) Unweighted 20 Hz-20 kHz, +0, - 0.5 dB

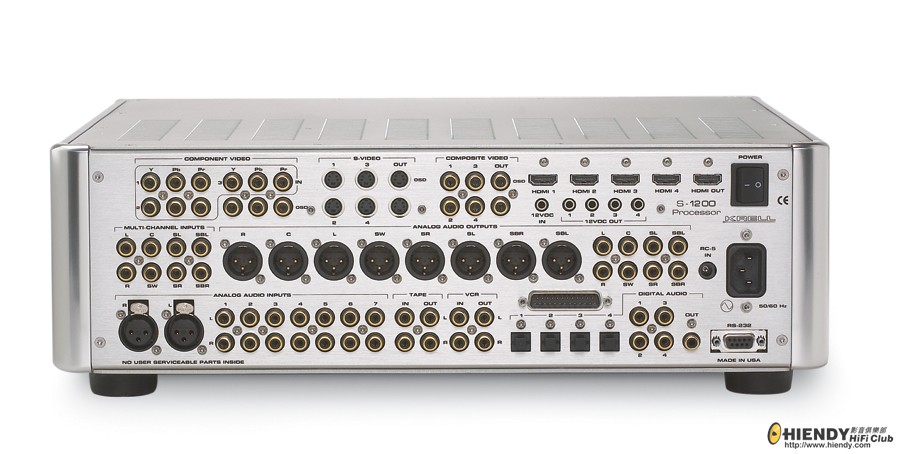

INPUTS
ANALOG AUDIO
(1) Pair Balanced via XLR connectors
(5) Pairs Single-ended via RCA connectors
(1) Discrete 7.1 via RCA connectors
(1) Tape in via RCA connectors
(1) VCR audio in via RCA connectors
DIGITAL AUDIO
(4) HDMI via HDMI connectors
(4) EIAJ optical via Toslink connectors
(4) Coaxial via RCA connectors
DIGITAL VIDEO
(4) HDMI via HDMI connectors
ANALOG VIDEO
(3) Component Video via RCA connectors
(4) S-video via DIN connectors
(3) Composite Video via RCA connectors

OUTPUTS
ANALOG AUDIO
(8) Balanced via XLR Connectors
R, L, C, SR, SL, SBR, SBL, SUB
(8) Single-ended via RCA Connectors
R, L, C, SR, SL, SBR, SBL, SUB
(1) Tape out via RCA connectors
(1) VCR audio out via RCA connectors
DIGITAL AUDIO
(1) EIAJ optical via TosLink connector
(1) Coaxial via RCA connector
DIGITAL VIDEO
(1) HDMI via HDMI connector
ANALOG VIDEO
(1) Component Video via RCA connectors
(1) S-video via DIN connectors
(1) Composite Video via RCA connector

CONTROL
(1) IR Receiver for Remote Control
(1) RS-232 via DB9 Female Connector Straight Wired
(1) RC-5 via 1/8" stereo "trs" Receptacle
(1) 12vdc Remote Trigger Input via 1/8" Mono receptacle
(4) 12vdc Remote Trigger Outputs via 1/8 Mono receptacles

DIGITAL DECODING MODES
Dolby True HD
Dolby Digital Plus
Dolby Digital 5.1
Dolby Digital EX
Dolby Pro Logic IIX
DTS Master Audio
DTS High Resolution Audio
DTS 5.1
DTS ES Discrete 6.1
DTS ES Matrix 6.1
DTS Neo:6
PCM 5.1
PCM 7.1
PREAMP (Direct Analog Only)
PREAMP 5.1 (Direct Analog Only)

SURROUND ENHANCEMENT MODES
General Admission
Front Row
On Stage
Enhanced Stereo
Orchestra
Mezzanine
Full Range + Sub
Monophonic
Party

RS-232 DB9 Pin Out
1. Data Carrier Detect
2. Received Data
3. Transmitted Data
4. Data Terminal Ready
5. Signal Ground
6. Data Set Ready
7. Request To Send
8. Clear To Send

RC-5 pin out
Tip = RC-5 data, Ring = +5 V, Sleeve = GND

XLR Pin Out
Pin 1 (ground) Pin 2 (non-inverting "Hot") Pin 3 (Inverting)

Maximum Input
Balanced 8.2 Vrms
Single Ended 4.1 Vrms

Maximum Output
Balanced 14.6 Vrms
Single Ended 7.3 Vrms

Audio Input Impedance
Balanced 51K Ω
Single Ended 47K Ω

Audio Output Impedance
Balanced 160 Ω
Single Ended 160 Ω

Power Consumption
Stand-by TBA
Operation TBA

DIMENSIONS
Inches (L) 17.15 x (W) 17.25 x (H) 5.65
Centimeters (L) 43.56 x (W) 43.82 x (H) 14.35

WEIGHT
18lbs Unit only
8.16kg Unit only
24lbs Shipping Weight
10.89kg Shipping weight

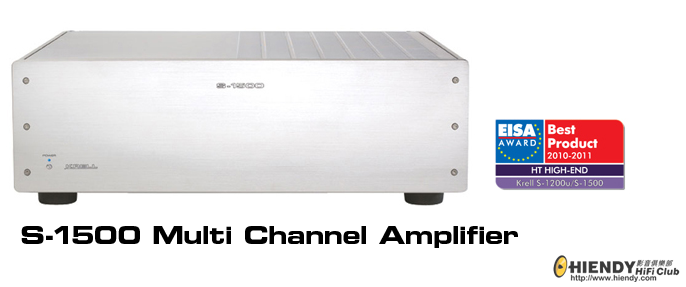

Frequency response
20 Hz to 20 kHz +0, -0.2 dB
<0.2 Hz to 95 kHz+0 dB, -3 dB
Signal-to-noise ratio
>115 dB, "A"-weighted
Gain
26.2 dB
Total harmonic distortion
< 0.03%@1kHz, at 150 W, 8 Ohms
< 0.20%@20 kHz, at 150 W, 8 Ohms
Input impedance
Single Ended: 45 kOhms
Balanced: 90 kOhms
Input sensitivity
Single Ended or Balanced: 1.70 V RMS
Output power
150 W RMS at 8 Ohms
300 W RMS at 4 Ohms
Output voltage
98 V peak-to-peak
35 V RMS
Output current
15 A peak
Slew rate
60 V/µs
Output Impedance
<0.070 Ohms at 20 Hz
<0.080 Ohms, 20Hz to 20 kHz<

Damping Factor (referred to 8 ohms)
115 at 20 Hz,
100, 20Hz to 20 kHz,
Power consumption
Standby: 70 W
Idle: 130 W
Maximum: 1300 W
Heat Output
Stand-by: 240 BTU/hr.
Idle: 450 BTU/hr.
Maximum: 1900 BTU/hr.
Inputs
5 single-ended via RCA connector
5 balanced via XLR connector
Outputs
5 channels via 5-way binding posts
Dimensions
17.3w x 5.7h x 19.8d
43.9w x 14.5h x 50.3d
Weight
Shipped: 66 lb., 29.9 kg
Unit Only: 56 lb., 25.3 kg

nagramen · 發表於 2012-3-3 11:37:37

Prices and services ok ma?

maner394 · 發表於 2012-3-3 11:37:58

呢部啱晒你新居用,同好襯你身份

rklpoon · 發表於 2012-3-3 11:39:42

分身家貨色

nagramen · 發表於 2012-3-3 11:48:17

eosteven · 發表於 2012-3-6 09:58:21

轉代理

Harry5 · 發表於 2012-3-6 10:08:16

就係出得問題多，又解決唔到，所以舊代理才唔做！

pinkhung · 發表於 2012-3-6 10:35:45

Harry5 發表於 2012-3-6 10:08
就係出得問題多，又解決唔到，所以舊代理才唔做！

出咗乜問題冴

Pochacco · 發表於 2012-3-6 19:16:32

是一件好的產品。

xyzero · 發表於 2012-3-6 19:44:22

Harry5 發表於 2012-3-6 10:08
就係出得問題多，又解決唔到，所以舊代理才唔做！

又諗小個牌子
