聖誕節的DIY - 派拉利 1.5mm 灌沙線

djaddy

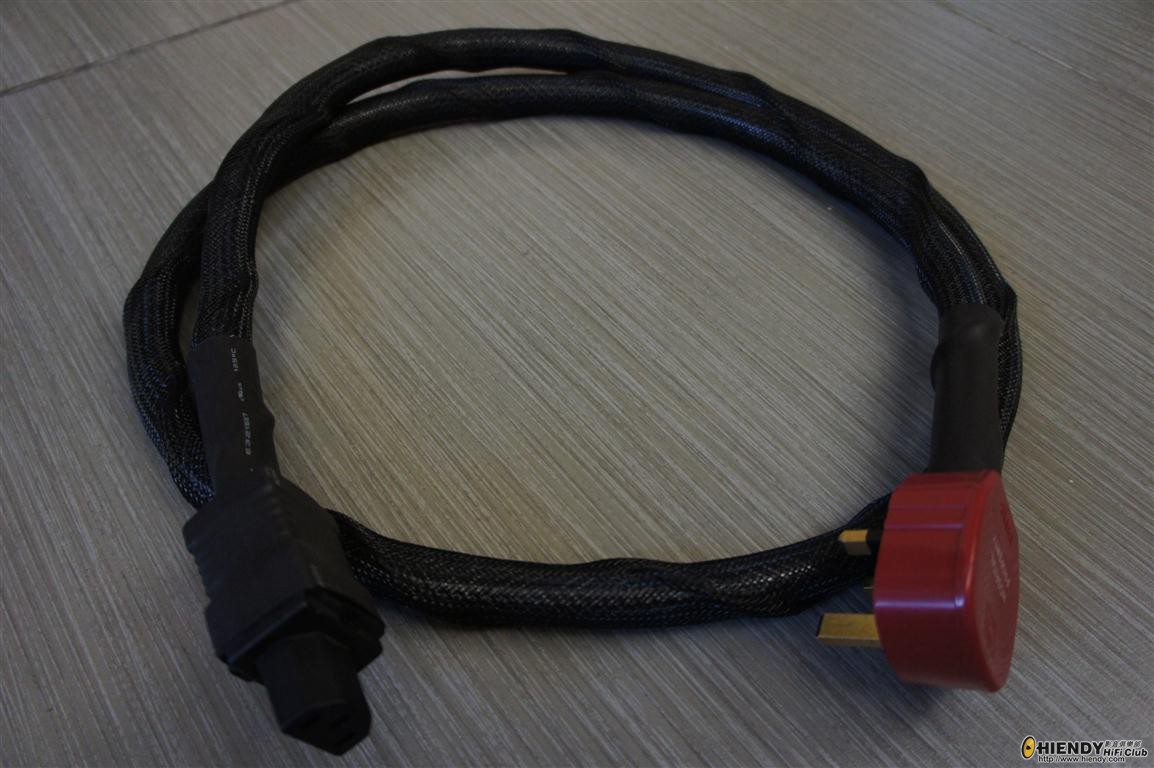

難得放幾日假,劣作一條6呎電源線比 LY202 拖板用!

請注意:
我測試過不少灌沙線的設計, 這派拉利 1.5mm 灌沙線是神奇的, 它適用於 TV, Amp & Source! 非常少PC 能做到這一點!

材料:
1. 派拉利 1.5mm

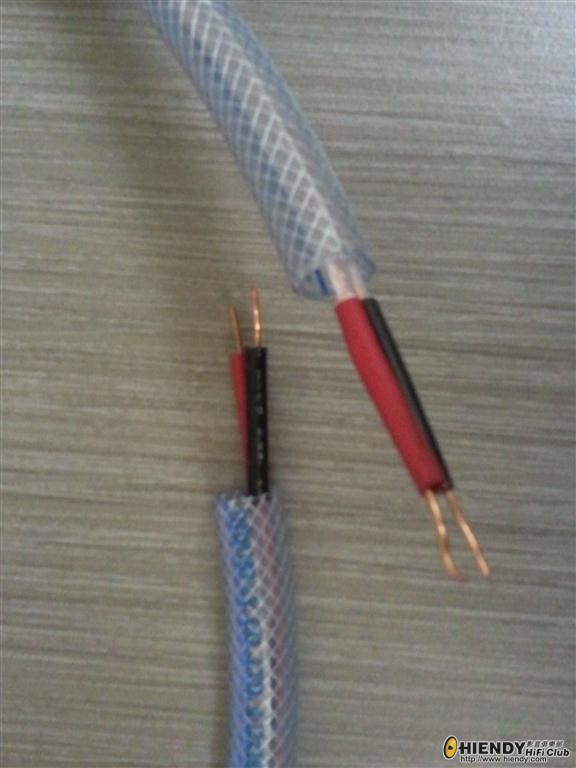

2. 3.5 分有網膠水喉

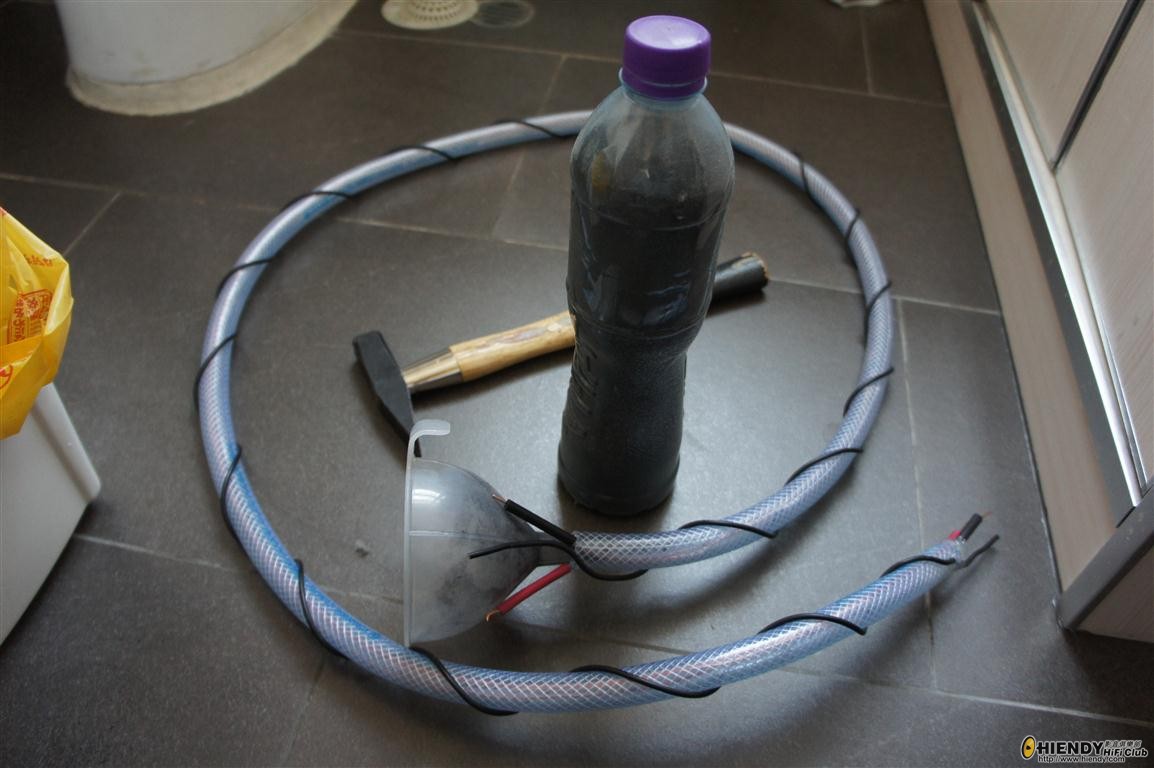

3. 幼沙 + 碳粉 + 澳門黑幼沙 (contains 海綠石)
4. UK 蘇頭 - red MK
5. IEC 頭 - Fututech Square
6. 熱縮膠
7. 熱溶膠
8. PC 網
9. 紫銅飛保險絲
10. Teflon
11. VDH 荷蘭神油

Al26

Thanks for sharing C-Hing!  Is the sound improved?

djaddy

Thanks for sharing C-Hing!  Is the sound improved?
Al26 發表於 2010-12-27 06:18

Hello ching,

Below is my 灌沙 research from earlier.

Research:
To eliminate harmonic vibrations, I have experimented with many different materials for 灌沙線. I tested, (深)海底幼沙, 碳粉, 鋼沙, 石英沙 & 澳門黑幼沙 (contains 海綠石). Each of these materials have different properties. Hence, they will have different audio characteristics. After much research, numerous tests & experiments, I conclude that high density, non intrusive materials with small grain size are the key factors for the best outcome. A portion of 碳粉  is added to eliminate EMF.

The best results for music (分析力, 細緻度, 高中低, 密度等):
1. (深)海底幼沙 + 碳粉
2. 澳門黑幼沙

Caution: 鋼沙會cut頻
以保留 "原味"架仔廠線不用鋼沙, 原因是 electric current induces magnetic fields. 鋼沙 is not a natural but an intrusive material that will intrude the flow of electric currents. So it's not a good shielding material. 鋼沙 may sound more dynamic initially. However, overtime 鋼沙會cut頻. Which means lot of audible details will be missing.
http://hyperphysics.phy-astr.gsu.edu/hbase/magnetic/magcur.html

camelblue

Hello ching,

Below is my 灌沙 research from earlier.

Research:
To eliminate harmonic vibrations ...
djaddy 發表於 2010-12-27 08:27

   今次包 teflon 重本左喎

sk555

iwantbd

Hello ching,

Below is my 灌沙 research from earlier.

Research:
To eliminate harmonic vibrations ...
djaddy 發表於 2010-12-27 08:27

    不理真假!{屬實?}

有紋有路!讚!

白影

勁!
咁我條老P灌沙線呢? 呵呵

djaddy

勁!
咁我條老P灌沙線呢? 呵呵
白影 發表於 2010-12-28 00:58

I am out of material at my Macau home. I dun have anymore plugs. I can only make you a bear 灌沙 cable. Is this ok?

白影

I am out of material at my Macau home. I dun have anymore plugs. I can only make you a bear 灌沙 c ...
djaddy 發表於 2010-12-28 08:53

OF cox OK la... thx bro.

djaddy

OF cox OK la... thx bro.
白影 發表於 2010-12-28 10:07

Emm... may not have much teflon left at home... need to use the original PVC clothing...

白影

Emm... may not have much teflon left at home... need to use the original PVC clothing...
djaddy 發表於 2010-12-28 17:19

teflon買啦買啦, 最多比番材料費比你, 呵呵。

djaddy

teflon買啦買啦, 最多比番材料費比你, 呵呵。
白影 發表於 2010-12-28 17:23

need to charge you for labor! haha...

白影

need to charge you for labor! haha...
djaddy 發表於 2010-12-28 17:35

任你開啦, 高手既人工費是無價的, 呵呵。

djaddy

任你開啦, 高手既人工費是無價的, 呵呵。
白影 發表於 2010-12-28 17:36

I will finish off my 2 x sub-woofer first la! Only a few days away! heehee...

白影

I will finish off my 2 x sub-woofer first la! Only a few days away! heehee...
djaddy 發表於 2010-12-28 23:35

great! wait for ur report

djaddy

great! wait for ur report
白影 發表於 2010-12-29 00:01

I finally got all the tools & parts required to finish the damn subs! It's taking ages!

hksarac

樓主，
如我是你，一定買條金屬網套在外，才用尼龍網套上。

djaddy

樓主，
如我是你，一定買條金屬網套在外，才用尼龍網套上。
hksarac 發表於 2011-1-2 17:58

灌左沙重加金屬網?!

dulldull

咁1.5mm 同 2.5mm 同4mm係聲底上有乜分別？

djaddy

1.5mm 快聲d & 有d味道.
2.5mm 好力d.
4mm 平均 d.
