最有效之較盤工具 - 德國acoustical- systems SMARTractor

Avantgarde-HK

SMARTractor video 2 - aligning a cartridge / tonearm with the SMARTractor

Avantgarde-HK

無容置疑, 這是黑膠友必備的工具, 沒用SMARTractor 調較之組合只能發揮到6-7成的音效.

東匯

Avantgarde-HK 發表於 2020-6-12 16:01
無容置疑, 這是黑膠友必備的工具, 沒用SMARTractor 調較之組合只能發揮到6-7成的音效.   ...

...

Avantgarde-HK

東匯 發表於 2021-3-19 04:01
...

Avantgarde-HK

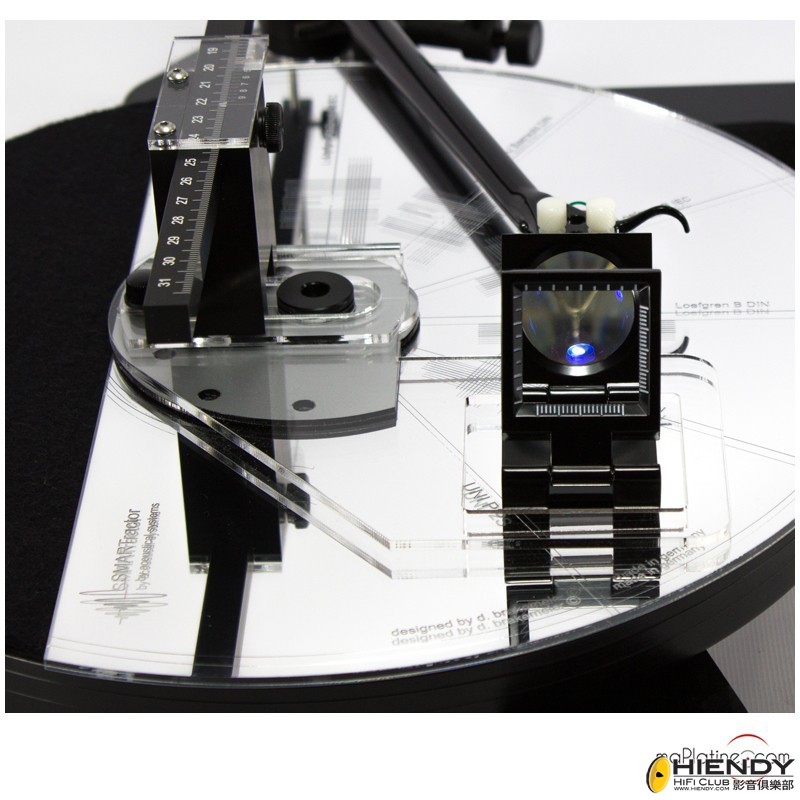

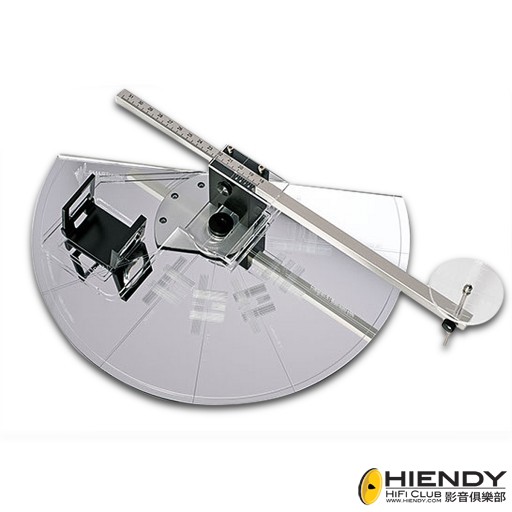

Phono cartridge alignment reaches new heights of precision, flexibility, and ease with the Acoustical Systems SMARTractor alignment tool. Featuring five tangential curves in a template comprised of 3mm premium-grade German XT mirrored acrylic and a one-point fixed setting for every tangential curve, SMARTractor ensures error-free use with its single-point alignment with deep parallax for all helping lines. Each alignment line is CNC-laser cut while a real glass aluminum-frame magnifier with automatic focus jig gives you unrivaled accurate viewing during zenith alignment. And since all five tangential alignments are based on true triangular positioning – and therefore, independent of effective length – they are suitable for all pivot tonearms no matter the length or mounting position. With SMARTractor in your analog arsenal, your cartridge will always be where it should – and the analog tracking of LPs and performance of your music reflective of such precision, care, and passion.

Avantgarde-HK

In 2010, Brakemeier set about creating a new alignment scheme tailored specifically to stereo microgroove LPs. The result of his work is a curve he calls UNI-DIN, the first three letters of the name being derived from universal, the last three standing for Deutsches Institut für Normung (German Institute for Standardization), one of the organizations that establishes, among other things, the standard characteristics of commercial LPs.

As Brakemeier suggests on the Acoustical Systems website, he developed his alignment scheme with some specific goals in mind, not the least being even lower distortion from an LP's innermost groove—for which the UNI-DIN curve trades "slightly higher [deviation] at the beginning of the groove—where the overall working conditions for the stylus are the best." Arguably more important was Brakemeier's goal of creating a curve in which increases in distortion are less drastic than in any other alignment—something he says is critical because "the human ear . . . is very sensitive to changes." Brakemeier suggests that the UNI-DIN distortion curve is "actually flatter than the other curves, in the sense that the inevitable dips and peaks of [deviation] in the tangential curve are smoother—less steep/fast in both directions."

Avantgarde-HK

SMARTractor 是黑膠發燒友必備的工具

Avantgarde-HK

好駛、好用、好聲!  SMARTractor調整規尺，用家可以超凡精密度來調整黑膠系統，獨有的UNI-DIN刻度，可將各種唱臂經過SMARTractor調教後有會有更好的表現。

亦可依照市場上大部份唱臂的設計，歸納的5種方法來調整。
1.Loefgren A/ Baerwald DIN
2.Loefgren A/ Baerwald IEC
3.Loefgren B DIN
4.Loefgren B IEC
5.UNI-DIN

Avantgarde-HK

SMARTractor 是最完美嘅較盤尺, 你用咗未?  絕無他選

Avantgarde-HK

Mr. Brakemeier developed his alignment scheme with some specific goals in mind, not the least being even lower distortion from an LP's innermost groove—for which the UNI-DIN curve trades "slightly higher [deviation] at the beginning of the groove—where the overall working conditions for the stylus are the best." Arguably more important was Brakemeier's goal of creating a curve in which increases in distortion are less drastic than in any other alignment—something he says is critical because "the human ear . . . is very sensitive to changes." Brakemeier suggests that the UNI-DIN distortion curve is "actually flatter than the other curves, in the sense that the inevitable dips and peaks of [deviation] in the tangential curve are smoother—less steep/fast in both directions."

Avantgarde-HK

SMARTractor 是市面上最好的規尺.  就算找不到資料的唱臂也可以調好, 並更靚.  仲意玩臂嘅朋友必買.

Avantgarde-HK

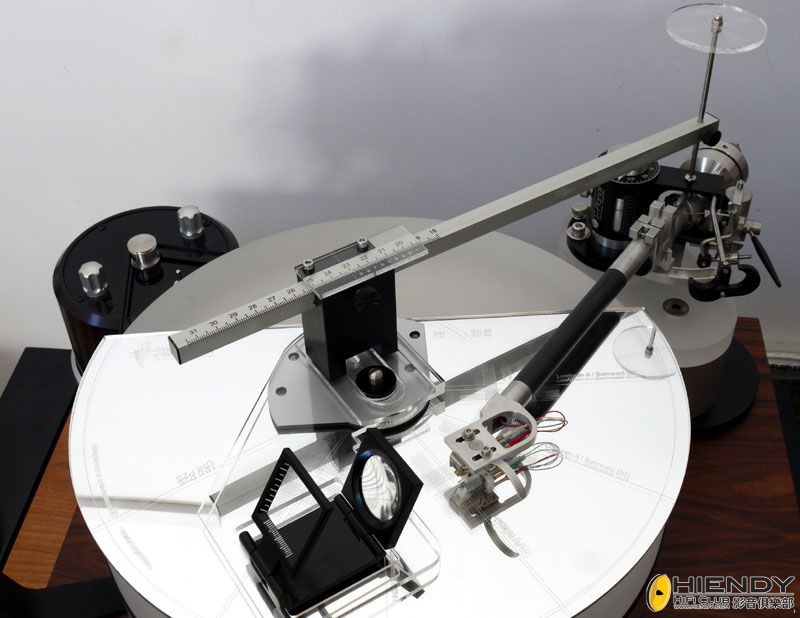

SMARTractor 附帶的工具能令用家輕鬆調整唱臂最準確位置.

Avantgarde-HK

Avantgarde-HK

Avantgarde-HK

Smartractor 是目前最精確的規尺

Avantgarde-HK

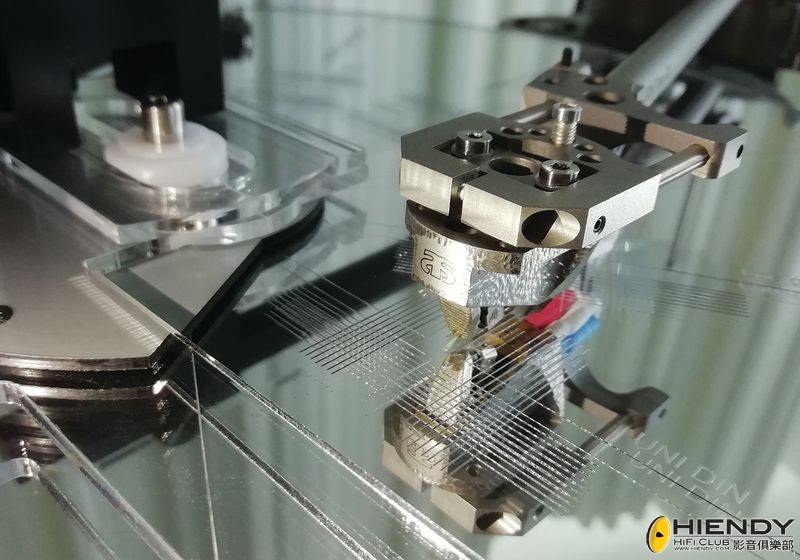

acoustical systems SMARTractor 是一款超精準、容易使用的唱盤規尺，專為熱愛黑膠及註重聲音質素的人士而設。它備有5條曲線適合市面上所有唱臂使用.  以雷射雕刻在鏡面亞克力板上、配合玻璃放大鏡，讓用戶能夠輕鬆精確地校準唱臂和唱頭方位角。 SMARTractor 提供 5 種校準選項，包括 UNI-DIN , Baerwald DIN Baerwald IEC, , Loefgren, IEC, Loefgren DIN，確保唱頭和唱臂完美對齊，從而獲得最佳音質。

SMARTractor 亦可以檢出各下沒有資料的唱臂規格, 如安裝距離, 有效長度等等, 十分好用.
